NYTT PÅ LAGER. GY-45 MMA8452 Digital Triaxial Module

kr33.00

Tax included

Description
Product Details

Denna kan finnas på lager och kan gå att köpa.
Har den ett positivt lagersaldo så finns den på lager.
Anledningen till att den ligger i kategori NYTT PÅ LAGER är att
den inte är beskriven eller att den inte är testad ännu.

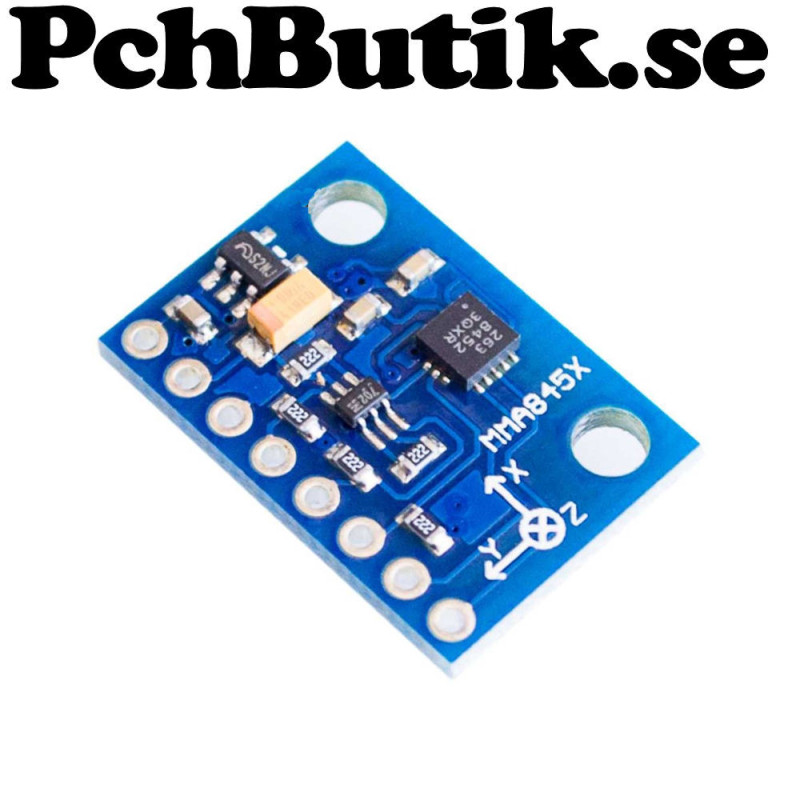

GY-45 MMA8452 Digital Triaxial Module

MMA8452Modules, high precision inclination sensor module

Module type:GY-45-52

Power supply:3-5v(Communication is fully compatible with5vWork systems)、

Mounting hole diameter3mm, Distance15mm

Module sizeLong*Wide=14.5mm * 20.5 mm

Properties

· Supply voltage:1.95 VTo3.6 V

· Interface voltage:1.6 VTo3.6 V

· ±2g/±4g/±8gDynamic range optional

· The output data rate(ODR)Range:1.56 HzTo800 Hz

· Noise:99μg/√Hz

· I2CDigital outputs (pull-up resistor4.7 kΩ, The highest frequency up to2.25 MHz)

· Applies to6Interrupt sources2A programmable interrupt pins

· 12And8Digital output

· 3A motion detection embedded channel

o Free fall motion detection:1Channel

o -Pulse detection:1Channel

o -Shake detection:1Channel

· Set delay compensation with orientation (portrait/Vertical) test

· Auto awake and auto sleepODRAutomatically change

· High pass filter data can be output

· Self test

· In line withRoHSStandard

· Power consumption:6 μA - 165 μA

· Typical application

o Application of electronic compass

o Static direction (horizontal/On the vertical and/Bottom, left/Right, front/Position recognition after)

o Notebooks, eBook reader and portable computers falls and free fall test

o Real-time detection (virtual reality and games3DUser feedback)

o Activity analysis in real time (pedometer step counts, forHDDFree fall detection, dead-reckoningGPSBackup)

o Motion detection for portable energy-saving products (used in mobile phones,PDA.GPS, Game automatic sleep and wake automatically)

o Shock and vibration testing (compensation of mechanical and electrical integration, shipping and warranty-use records)

User interface (change menu scroll through directions, for button replace label detection
