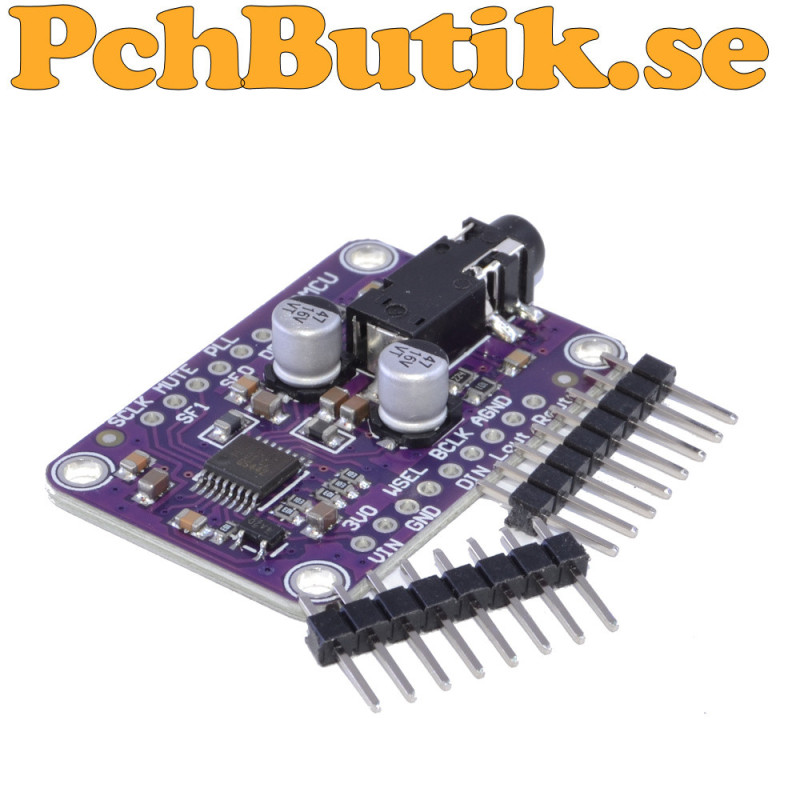

UDA1334A I2S Stereo DAC Module with Analog Stereo Output for Arduino and Raspberry Pi

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The UDA1334A is a compact I2S DAC module that converts digital audio into a high-quality analog stereo signal. It supports 3.3 V to 5 V logic levels and is compatible with a wide range of microcontrollers and single-board computers, including Arduino, ESP32, STM32, and Raspberry Pi.

Its built-in PLL allows operation with I2S interfaces that do not provide a Master Clock, making it especially suitable for Raspberry Pi. For standard operation, only the Data In, Word Select, and Bit Clock signals need to be connected.

The module supports standard I2S as well as left-justified 16-bit, 20-bit, and 24-bit audio formats. The analog output is line level and is intended for connection to an external audio amplifier, powered speakers, or other audio equipment. A dedicated mute input and an optional de-emphasis filter are also provided.

Facts.
Product type: I2S stereo DAC module
DAC chip: UDA1334A
Operating voltage: 3.3 to 5 V DC
Logic level: 3.3 V to 5 V
Digital interface: I2S
Audio formats: I2S, left-justified 16-bit, 20-bit and 24-bit
Output: Analog stereo line level
Master Clock: Not required during normal operation thanks to built-in PLL
Mute function: Yes
De-emphasis filter: Yes
Compatible with: Arduino, ESP32, STM32, Raspberry Pi and other I2S devices
Applications: Digital audio playback, media players, audio projects and embedded systems

Included.
1 pc module.

About the product.
Weight: approx 10 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 2843
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-07-27
