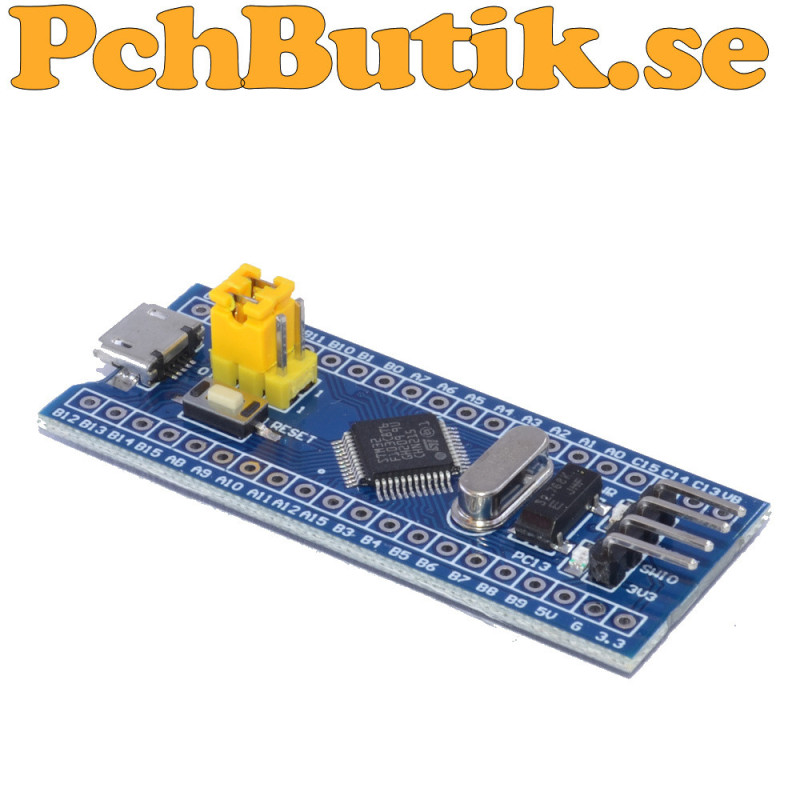

STM32F103C8T6 Development Board with ARM Cortex-M3 and Micro USB

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The STM32F103C8T6 is a compact development board based on the powerful 32-bit STM32F103C8T6 microcontroller with an ARM Cortex-M3 core. It is suitable for embedded systems, robotics, automation, measurement equipment, IoT, and many other electronic projects requiring high performance and low power consumption. The board features a Micro USB connector for power and optional USB communication when supported by the installed firmware. A standard SWD interface enables programming and debugging using ST-Link programmers. BOOT jumpers allow easy boot mode selection during programming. An external 8 MHz crystal oscillator together with the internal PLL allows operation at up to 72 MHz. Dual 20-pin expansion headers provide access to the GPIO pins for connecting sensors, displays, communication modules, and other peripherals. This version is supplied without soldered pin headers.

Facts.
Microcontroller: STM32F103C8T6
Processor: 32-bit ARM Cortex-M3
Clock Frequency: Up to 72 MHz
Crystal Oscillator: 8 MHz SMD
Flash Memory: 64 KB
SRAM: 20 KB
Operating Voltage: 3.3 V
Voltage Regulator: 3.3 V
Maximum Regulator Output Current: 800 mA
USB Connector: Micro USB
Programming Interface: SWD
Compatible Programmers: ST-Link
BOOT Selection: Yes
I/O Expansion Header: 2 × 20 pins
Status Indicator: User LED
Serial Interface: UART
Board Size: 22.86 × 53.34 mm
Assembly: Without soldered pin headers

Included.
1 pc module.

About the product.
Weight: approx 13 gram.
