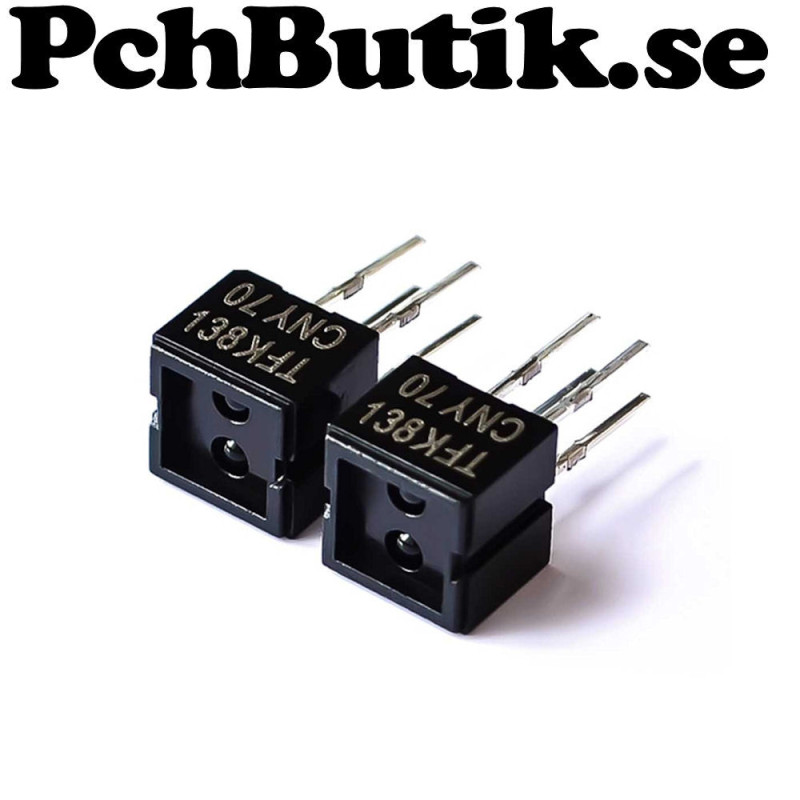

CNY70 reflective photoelectric sensor

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The CNY70 is a reflective photoelectric sensor that combines an infrared emitter and a phototransistor in a single package. The sensor is used to detect objects or contrasts by measuring reflected light from surfaces. It is well suited for applications such as line following speed measurement positioning and object detection. The compact design makes it easy to mount in various electronic projects and systems.

Facts.
Product type: Reflective photoelectric sensor
Model: CNY70
Emitter type: Infrared LED
Emitter wavelength: 950 nm
Max forward current emitter: 50 mA
Forward voltage emitter: 1.25 to 1.6 V
Power dissipation emitter: 100 mW
Detector type: Phototransistor
Filter: Daylight blocking
Max collector current: 50 mA
Power dissipation detector: 100 mW
Length: 7 mm
Width: 7 mm
Height: 6 mm
Application: Object and reflection detection

Included.
2 pcs

About the product.
Weight: approx 4 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 2105
Remaining stock quantity can be found under the Product details tab.
