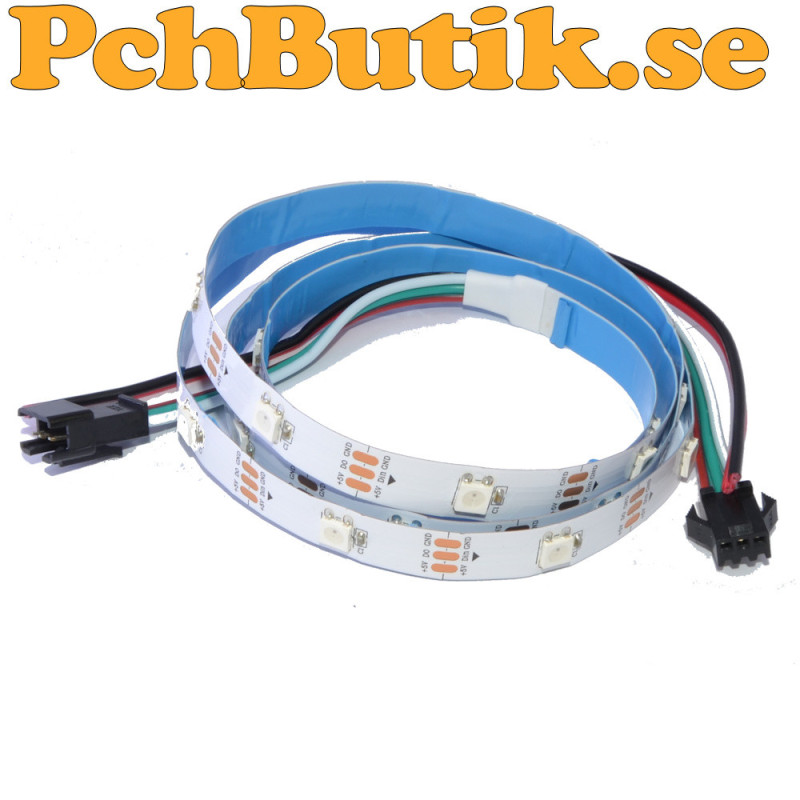

WS2812B 5V 5050 RGB LED strip 30 LEDs per meter with white PCB 1 meter

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
WS2812B 5V 5050 RGB LED strip with white PCB and a length of 1 meter. The strip uses addressable WS2812B control circuits, allowing each LED to be controlled individually. The 30 LEDs per meter can display different colors and create effects such as color transitions, lighting effects and animations.

The strip operates from a 5 V DC power supply and has wires for power and data connections. It does not have a fixed connector for 5 V power, allowing it to be connected directly to a suitable power supply or other equipment providing 5 V.

The LED strip can be cut between each LED segment. This makes it possible to use shorter sections of the strip in different projects. Each section should be connected according to the markings for 5 V, GND and data. When using multiple sections, the required power supply and voltage drop along the strip should be taken into consideration.

The WS2812B is controlled using a serial data signal from devices such as Arduino, ESP8266 or ESP32. Each LED uses 24 bits of color data with 8 bits each for red, green and blue. This provides 256 levels for each color channel and allows a large range of different colors to be displayed.

The white PCB gives the strip a bright appearance and the LEDs have a wide emission angle of approximately 180 degrees. The product is suitable for electronic projects, lighting, decorations, indicators, models and various types of programmable lighting effects.

At maximum brightness with all color channels active, the current consumption can be significant. Use a 5 V power supply suitable for the actual installation. For longer connections, additional power injection may be required to reduce voltage drop.

Facts.
Product type : Addressable RGB LED strip
Control IC : WS2812B
LED type : 5050 RGB
Operating voltage : DC 5 V
LEDs per meter : 30
Segments per meter : 30
Control : Individual control of each LED
Colors : Full color RGB
Gray level : 256 levels per color channel
Color channels : 3
Data width : 24 bit per LED
Emission angle : 180 degrees
PCB color : White
Length : 1 meter
Cutting : Can be cut between each LED segment
Operating temperature : -15 to +50 degrees C
PCB width : 10 mm
PCB thickness : Approximately 2 mm for bare PCB
Thickness with glue drop : Approximately 3 mm
Thickness with casing : Approximately 4 mm
Connection : 3 wires for 5 V, GND and data plus 2 power wires
Connector : No fixed 5 V power connector
Power connection : Connected through wires
Data communication : Serial data signal
Compatibility : Arduino, ESP8266 and ESP32 with suitable data signal
Applications : Programmable lighting, decoration, models and electronic projects

Included.
1 pc module., 1 meter

About the product.
Weight: approx 38 gram.
