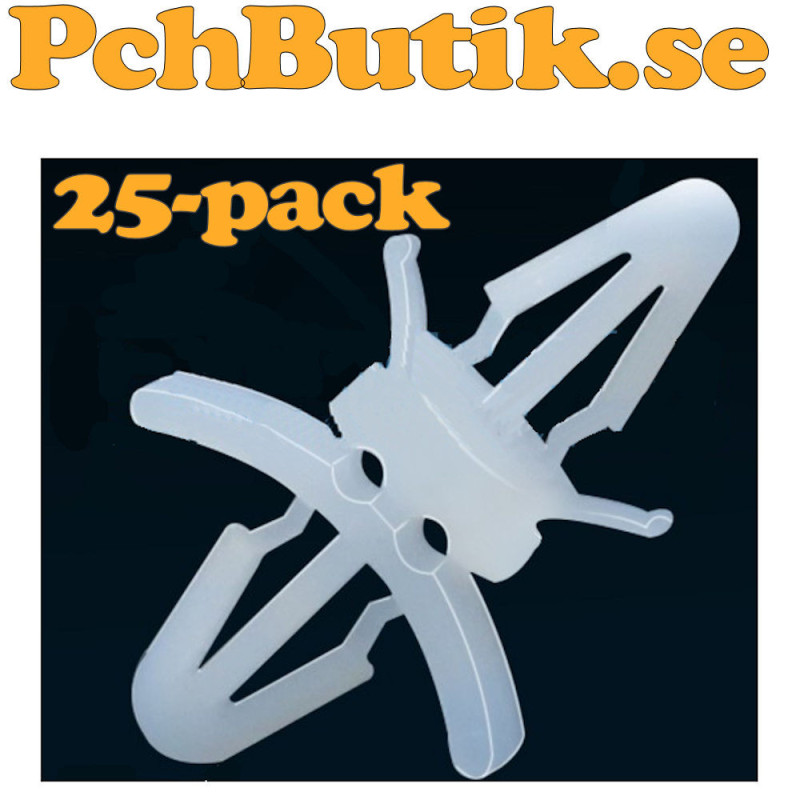

XL-5 nylon snap lock PCB support spacer with 5 mm spacing

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The XL-5 is a practical nylon snap lock support designed for fast and secure PCB mounting without screws or nuts. It acts as an insulating spacer between two printed circuit boards or between a PCB and a chassis. The flexible locking tabs allow quick installation by simply pushing the support into pre-drilled mounting holes.

The 5 mm spacing provides reliable separation while the electrically insulating Nylon 66 construction helps reduce the risk of short circuits. The support is suitable for circuit boards and panels with a thickness of 0.8 to 1.5 mm and fits mounting holes with a diameter of 4.0 to 4.5 mm.

Made from durable Nylon 66, the support offers good mechanical strength and operates in temperatures from -20 to 120 degrees C. It is ideal for electronic assemblies, prototypes, industrial equipment, measuring instruments, control systems and many other PCB mounting applications.

Facts.
Product name: XL-5 PCB Board Isolation Column
Model: XL-5
Type: Snap lock PCB support
Application: PCB mounting and insulation
Material: Nylon 66
Flammability rating: UL94V-2
Spacer height: 5 mm
Mounting hole diameter: 4.0 to 4.5 mm
Compatible material thickness: 0.8 to 1.5 mm
Mounting method: Snap lock without screws
Electrical insulation: Yes
Operating temperature: -20 to 120 degrees C
Color: White

Included.
25 pcs.

About the product.
Weight: approx 13 gram.
