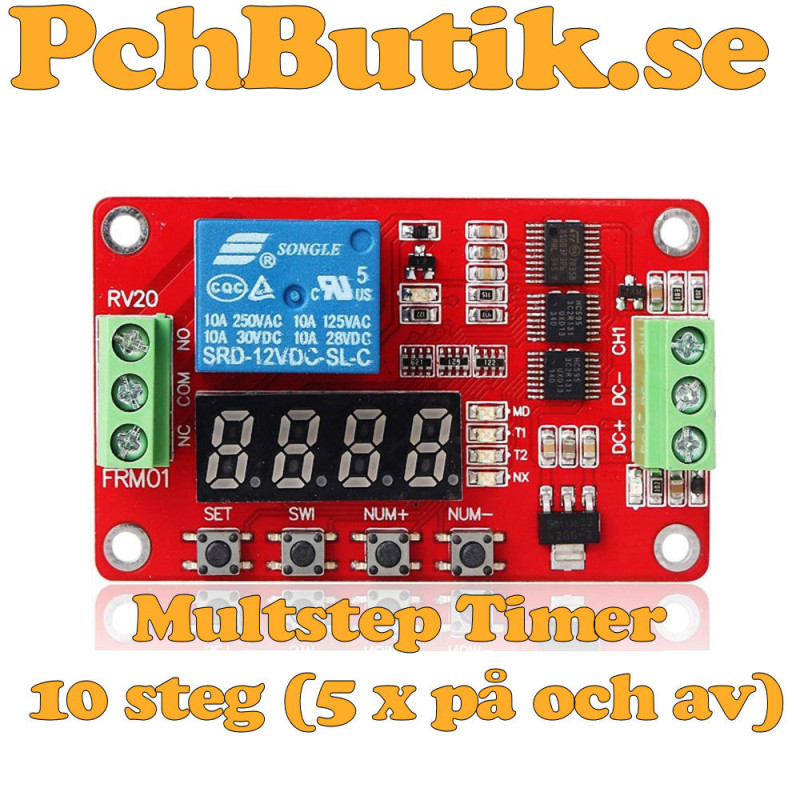

Programmable 10 step timer with relay and flexible trigger start

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This multistep timer is a custom designed module that controls a relay through a sequence of up to 10 steps. Each step can be individually set with a duration between 1 and 9999 seconds. The module can start automatically when power is applied via an external trigger or a combination of both. Odd steps turn the relay on while even steps turn it off making it ideal for automated cycles and sequence control. This is not a standard FRM01 module but designed for more flexible and advanced use.

Facts.
Number of steps: 10
Time range per step: 1 to 9999 seconds
Max time: 9999 seconds about 2.7 hours
Output: Relay
Control: Sequence with on and off steps
Start mode: On power up external trigger or combination
Trigger input: CH1 rising or falling edge
Step function: Odd steps relay on even steps relay off
Module type: Custom design not standard FRM01

Manual
https://kopplat.pchbutik.se/pcb/timers/digitala/MultiStep/index.php

Included.
1 pc module.

About the product.
Weight: approx 30 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 4340
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-04-20
