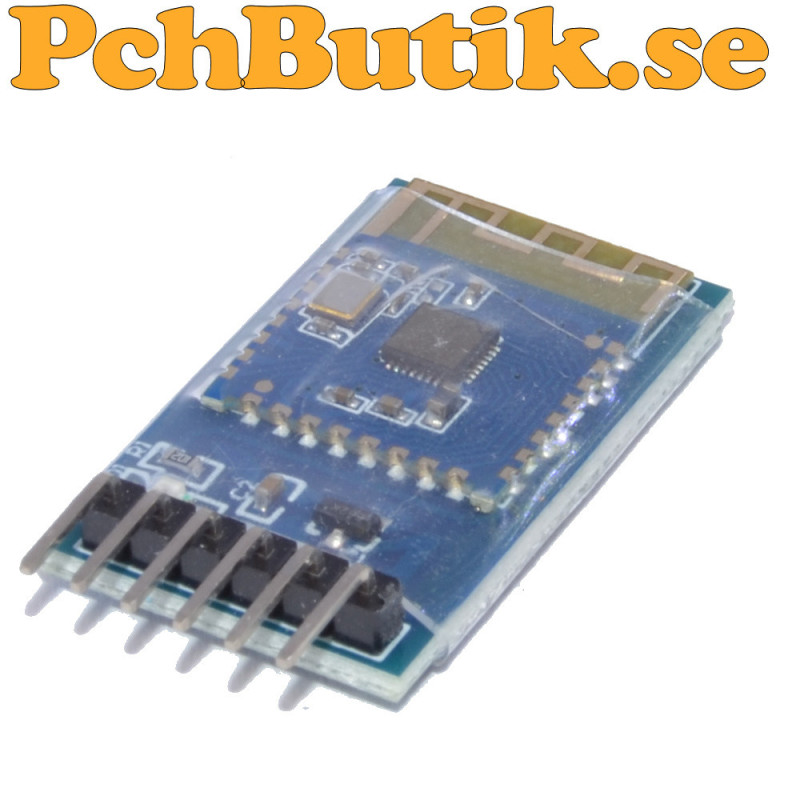

JDY-23 Bluetooth 5.0 module with base plate for BLE and UART

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The JDY-23 is a compact Bluetooth 5.0 BLE module mounted on a base plate with pin headers for easy connection and rapid prototyping. The module uses Bluetooth Low Energy technology to provide wireless data communication between a microcontroller and a smartphone, or between two compatible BLE devices.

It communicates through a UART interface and is ready to use with its default configuration. Device name, baud rate, and other parameters can be customized using AT commands, making it suitable for a wide range of applications. The module is ideal for IoT projects, sensors, control systems, data logging, home automation, and battery-powered devices where low power consumption is essential.

The base plate makes the module easy to connect to breadboards, development boards, and prototype PCBs. The integrated pin headers eliminate the need to solder directly to the Bluetooth module, simplifying development and testing.

Facts.
Product: JDY-23 Bluetooth 5.0 module
Version: With base plate
Bluetooth version: 5.0 BLE
Bluetooth standard: Bluetooth Low Energy
Frequency band: 2.4 GHz
Modulation: GFSK
Communication interface: UART
Operating voltage: 1.8 to 3.6 V DC
Maximum transmit power: 4 dBm
Receiver sensitivity: -97 dBm
Communication range: Up to 60 m
AT commands: Yes
Configurable device name: Yes
Configurable baud rate: Yes
Mounting: Base plate with pin headers
Operating temperature: -40 to +80 Celsius
Dimensions: 18.3 × 32.7 mm

Included.
1 pc module.

About the product.
Weight: approx 8 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3556
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-08-03
