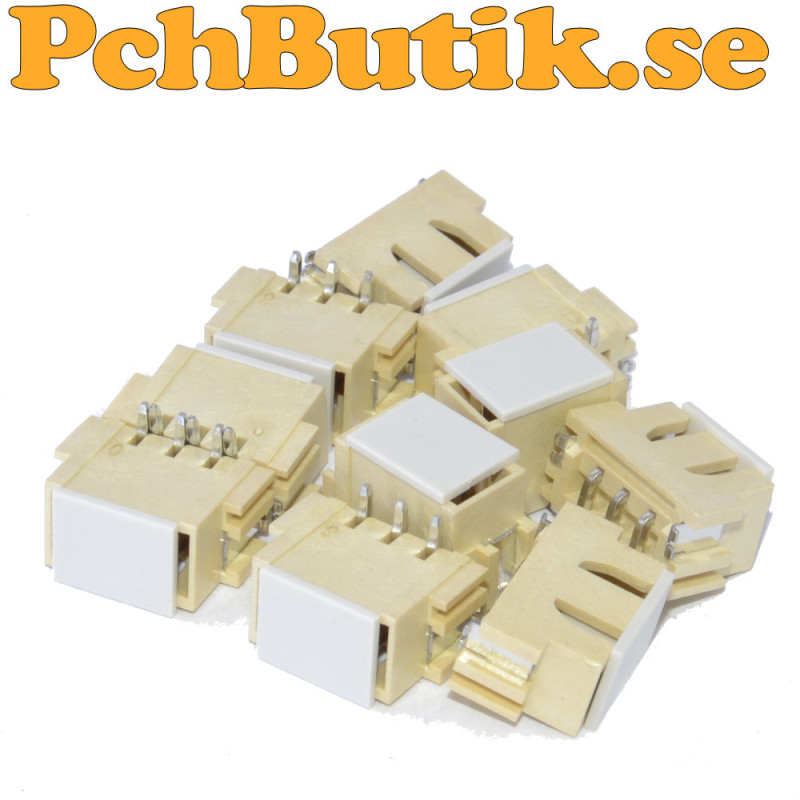

XH2.54 3P vertical SMD connector also suitable for THT mounting

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
XH2.54 3P vertical PCB connector with 2.54 mm pitch. The connector is primarily designed for SMD mounting and has two additional NC feet for mechanical stability during SMD mounting.

The connector can also be mounted as THT. With THT mounting, the connection pins are inserted through drilled holes in the circuit board and the connector is mounted horizontally against the circuit board. This makes the connector suitable for both surface mount and through hole assembly.

The connector is designed for XH2.54 connections and fits corresponding XH2.54 connectors for cable connections. The plastic housing and metal contacts provide a compact and practical solution for connecting cables to circuit boards.

It is suitable for electronics projects, control boards, sensors, modules and other circuit boards where a removable cable connection with 2.54 mm pitch is required.

Facts.
Connector type : XH2.54
Number of pins : 3P
Pitch : 2.54 mm
Mounting : SMD or THT
Design : Vertical
THT mounting : Can be mounted horizontally through the circuit board
Additional feet : 2 NC feet for mechanical stability during SMD mounting
Material : Plastic and metal
Application : PCB and cable connection

Included.
10 pcs


About the product.
Weight: approx 12 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3990
