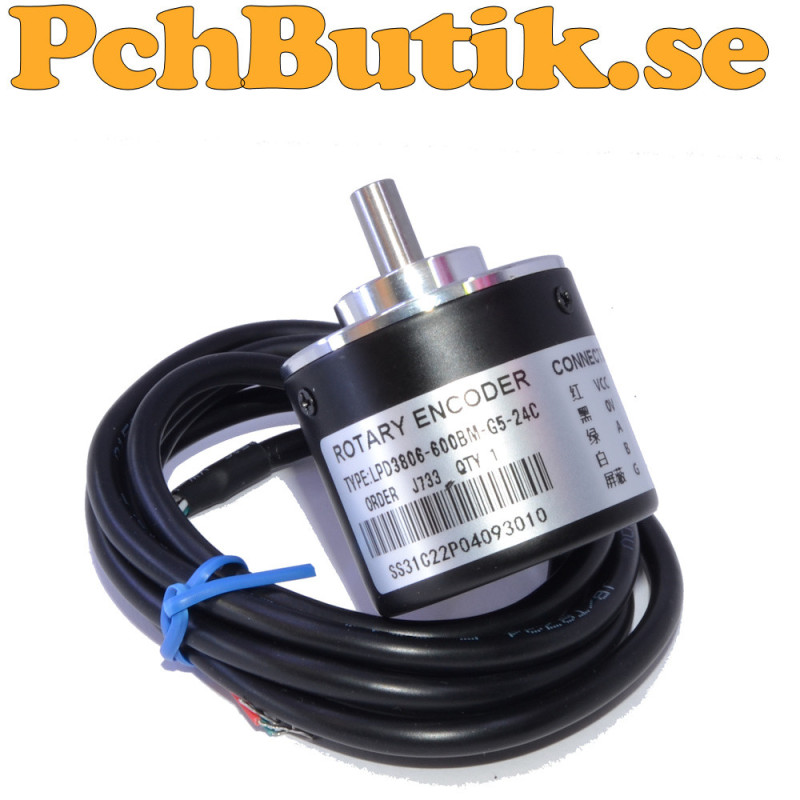

Incremental optical rotary encoder LPD3806 600 PPR 5 to 24 V

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The LPD3806 is an incremental optical rotary encoder designed for measuring position, rotation direction, and rotational speed in industrial and electronic applications. The encoder provides two phase shifted output signals, A and B, allowing controllers to determine both movement direction and speed. With a resolution of 600 pulses per revolution, up to 2400 counts per revolution can be achieved using four times quadrature decoding. Its durable design makes it suitable for CNC machines, robotics, automation equipment, servo motors, stepper motors, and positioning systems. The encoder features NPN open collector outputs and operates from a 5 to 24 V DC supply. It can easily interface with microcontrollers, PLCs, and other control systems. Do not connect the A or B outputs directly to VCC, as this may damage the output transistors.

Facts.
Model: LPD3806-600BM-G5-24C
Type: Incremental optical rotary encoder
Resolution: 600 pulses per revolution
Maximum resolution with four times decoding: 2400 counts per revolution
Output signals: A and B quadrature outputs
Output type: NPN open collector
Supply voltage: 5 to 24 V DC
Maximum mechanical speed: 5000 rpm
Response frequency: 0 to 20 kHz
Shaft diameter: 6 mm
Shaft length: 13 mm
Housing size: 38 x 35.5 mm
Cable length: 1.5 m
Green wire: Phase A
White wire: Phase B
Red wire: VCC positive
Black wire: GND
Shield: Cable shield
Applications: CNC, robotics, servo motors, stepper motors, automation systems, positioning systems
Manufacturer: OEM, commonly sold under the LPD3806 model name

Included.
1 pc module.

About the product.
Weight: approx 115 gram.
