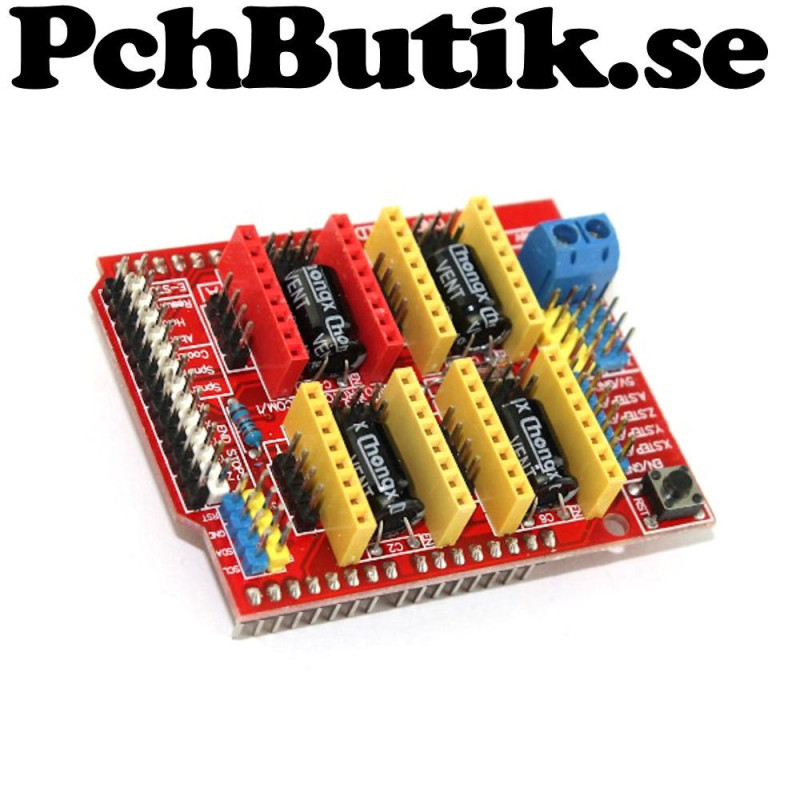

CNC Shield V3 expansion board for A4988 stepper drivers

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The CNC Shield V3 is an expansion board designed for A4988 stepper motor drivers and is intended for use with Arduino UNO. It is ideal for CNC machines, engraving machines and 3D printers. The board features four slots for A4988 drivers and can control up to four stepper motors at the same time. Each stepper motor requires only two IO ports, making installation simple and efficient. The board provides clear pin mapping between the Arduino and the stepper drivers and is easy to integrate into various motion control projects. Please note that A4988 modules and Arduino UNO are not included.

Facts.
Product name: CNC Shield V3
Compatibility: Arduino UNO R3
Driver slots: 4 A4988
Number of stepper motors: Up to 4
Control per motor: 2 IO ports
Application: CNC machine 3D printer engraving machine
Enable pin: D8
X STEP: D2
Y STEP: D3
Z STEP: D4
X DIR: D5
Y DIR: D6
Z DIR: D7

Included.
1 pc module.

About the product.
Weight: approx 29 gram.
