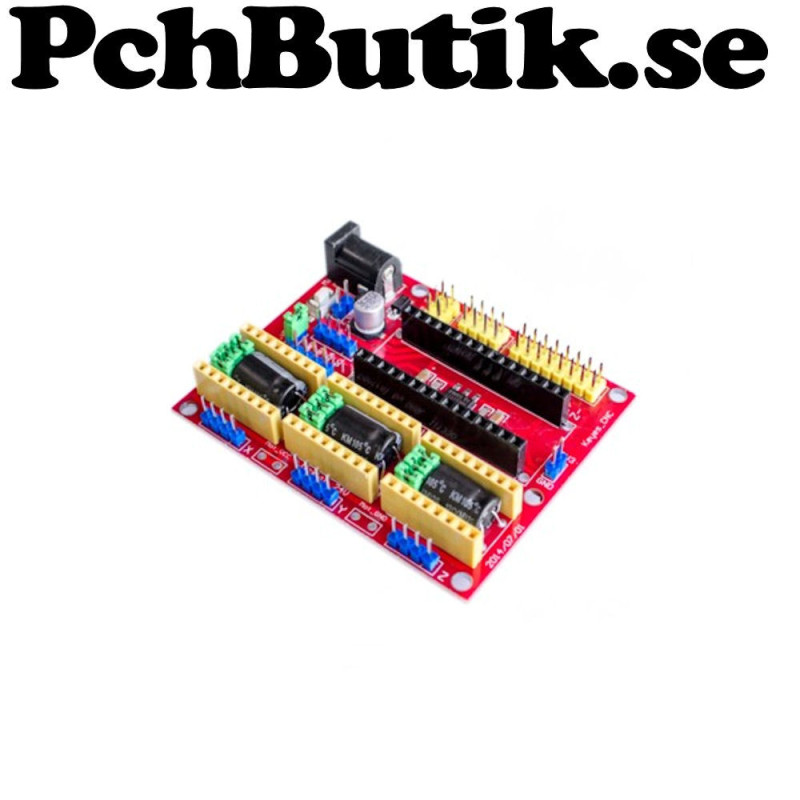

CNC Shield V4 expansion board for Arduino Nano stepper control

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This CNC Shield V4 expansion board is designed to control stepper motors in CNC machines, engraving machines, and 3D printers. It works together with an Arduino Nano and provides a simple way to control up to three stepper motors using plug in driver modules. The board includes multiple connectors for endstops, I2C modules, and other accessories, making it flexible for different projects. With clearly labeled pins and a practical layout, it is suitable for both beginners and advanced users in automation and robotics.

Facts.
Product name: CNC Shield V4
Compatibility: Arduino Nano
Axes: 3
Driver slots: 3
Stepper motor type: 2 phase 4 wire
Max motor current: Up to 2 A
Interface: Digital IO and I2C
Logic voltage: 5 V
Motor supply voltage: 7.5 to 12 V
Support: GRBL firmware
Application: CNC laser engraving 3D printer
Size: 59 x 72 mm

Included.
1 pc module.

About the product.
Weight: approx 32 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1485
