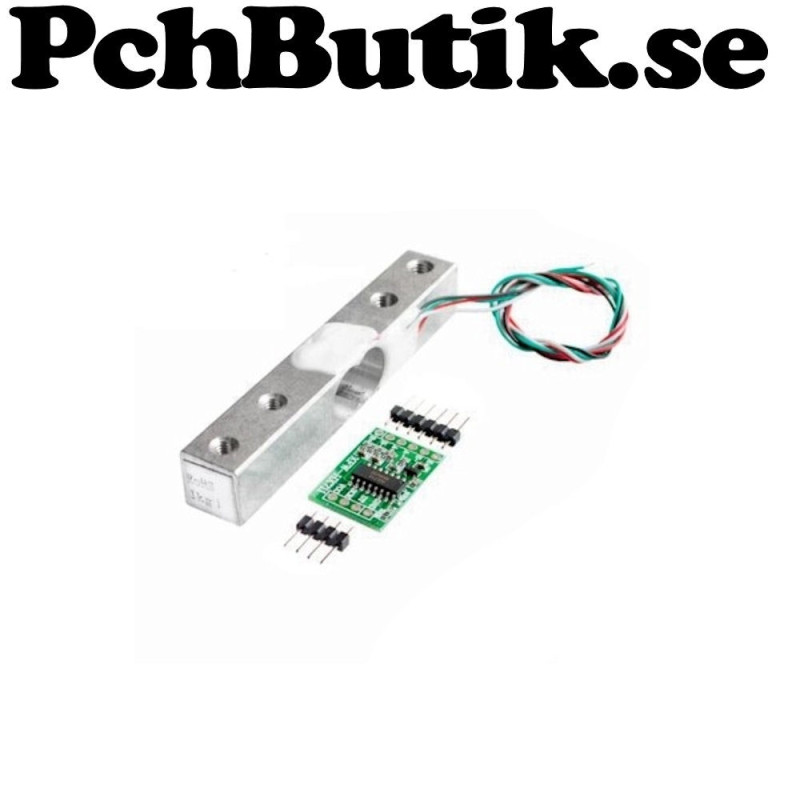

20 kg load cell with HX711 module for measurement

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This product consists of a load cell rated up to 20 kg combined with an HX711 module. It is used for load and pressure measurement in electronic projects such as scales control systems and test setups. The HX711 module simplifies connection to microcontrollers and provides stable and accurate measurement values.

Facts.
Product: Load cell with HX711 module
Measurement range: Up to 20 kg
Output sensitivity: 1.0 mV per V
Zero output: 0.1 mV per V
Repeatability: 0.05 percent F.S
Creep: 0.05 percent F.S per 3 min
Nonlinearity: 0.05 percent F.S
Hysteresis: 0.05 percent F.S
Output impedance: 1000 ohm
Zero temperature drift: 0.05 percent F.S per 10 C
Sensitivity temperature drift: 0.05 percent F.S per 10 C
Cable colors: Red positive supply green negative supply black signal positive white signal negative
Sensor size: 81x13.5x13.5 mm

Included.
2 Parts

About the product.
Weight: approx 33 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1764
