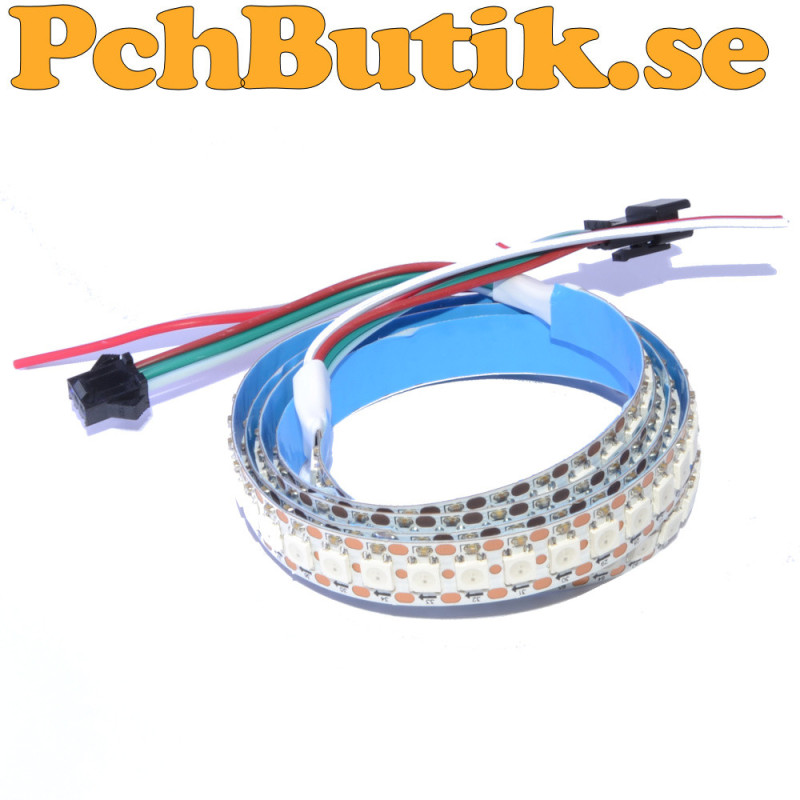

144, White PCB 1M

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
WS2812B 5 V 5050 RGB LED Light Strip with 144 individually addressable RGB LEDs per meter and white PCB. Each LED has an integrated control chip, allowing the LEDs to be controlled individually using a digital data signal. This makes it possible to create colors, color transitions, lighting effects and various animations.

The LED strip operates from a 5 V DC supply and can be controlled using devices such as Arduino, ESP8266 or ESP32. Libraries such as FastLED and Adafruit NeoPixel can be used to create different lighting effects. Each color channel has 256 gray levels for red, green and blue, providing full RGB color control.

With 144 LEDs per meter, the strip has a very dense LED arrangement and can provide uniform light output. The emitting angle is 180 degrees. The white PCB surface provides a bright and discreet appearance and is suitable for applications such as decoration, models, signs, lighting and various electronic projects.

At high brightness levels, the current consumption can be high. The 5 V supply should therefore be connected using sufficiently thick wires to reduce voltage drop. For high load applications, it is also recommended to connect the power supply at both ends of the strip.

The strip has an SM3 pin connection and two power cables. The data signal is sent from the first LED to the next LED and continues through the entire strip. This allows all 144 LEDs to be controlled individually using a single digital data signal.

Facts.
Product : WS2812B 5 V 5050 RGB LED Light Strip
Supply voltage : DC 5 V
LED type : WS2812B 5050
LEDs per meter : 144
Control : Individually addressable digital control
Colors : Full color RGB
Gray level : 256 levels per color channel
Emitting angle : 180 degrees
PCB color : White
PCB width : 12 mm
Bare PCB thickness : 2 mm
Glue coated thickness : 3 mm
Casing thickness : 4 mm
Connection : SM3 pin terminal and 2 power cables
Working temperature : -15 degrees C to +50 degrees C
Segments per meter : 144
Control chip : Integrated in each LED
Power supply : 5 V DC
Recommended controllers : Arduino, ESP8266 or ESP32
Power consumption : Depends on the selected color and brightness level

Included.
1 pc module.

About the product.
Weight: approx 51 gram.
