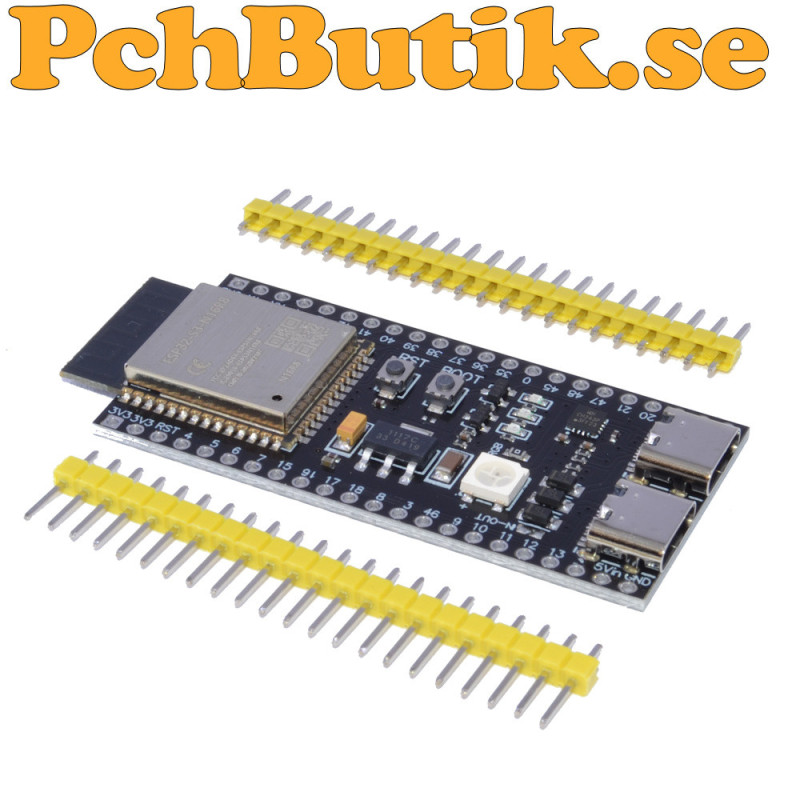

ESP32-S3-DevKitC-1 N16R8 development board with WiFi, Bluetooth LE, 16 MB Flash and 8 MB PSRAM

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The ESP32-S3-DevKitC-1 N16R8 is a powerful development board based on the modern ESP32-S3 microcontroller from Espressif. It is designed for IoT, embedded systems, automation, wireless communication, AI and advanced electronics projects. With 16 MB of external Flash memory and 8 MB of external PSRAM, the board provides plenty of space for large applications, graphics, audio and image processing.

The ESP32-S3 features a dual core Xtensa LX7 processor running at up to 240 MHz. It includes built in 2.4 GHz WiFi and Bluetooth Low Energy 5.0 for reliable wireless connectivity.

The integrated USB interface makes programming and debugging easy without requiring an external USB to serial adapter. The USB interface can also be used to create USB devices such as keyboards, mice, joysticks and other HID devices.

The large PSRAM makes the board especially suitable for color displays, camera modules and graphical user interfaces. The ESP32-S3 also includes a built in camera interface, making it ideal for image processing, AI applications, web servers and advanced IoT devices.

Most GPIO pins are available on pin headers for easy connection of sensors, relays, motor drivers, displays and other peripherals. The board supports GPIO, ADC, PWM, UART, SPI, I2C, I2S, USB OTG and SD cards.

The ESP32-S3-DevKitC-1 can be programmed using Arduino IDE, PlatformIO, ESP-IDF, MicroPython and CircuitPython, making it suitable for both beginners and experienced developers.

The I/O pin headers are not soldered to the board.


Facts.
Model: ESP32-S3-DevKitC-1 N16R8
Microcontroller: ESP32-S3
Processor: Dual core Xtensa LX7
Clock frequency: Up to 240 MHz
Built in SRAM: 512 KB
Built in ROM: 384 KB
External Flash memory: 16 MB
External PSRAM: 8 MB
Wireless: WiFi 2.4 GHz 802.11 b g n
Bluetooth: Bluetooth Low Energy 5.0
USB: USB OTG for programming and communication
Logic level: 3.3 V
Interfaces: GPIO, ADC, PWM, UART, SPI, I2C, I2S, USB OTG, SD card
Camera support: Yes, built in camera interface
Color display support: Yes
Development environments: Arduino IDE, PlatformIO, ESP-IDF, MicroPython, CircuitPython
Applications: IoT, AI, automation, camera projects, color displays, data logging, USB devices and embedded systems

Included.
1 pc module.

About the product.
Weight: approx 15 gram.
