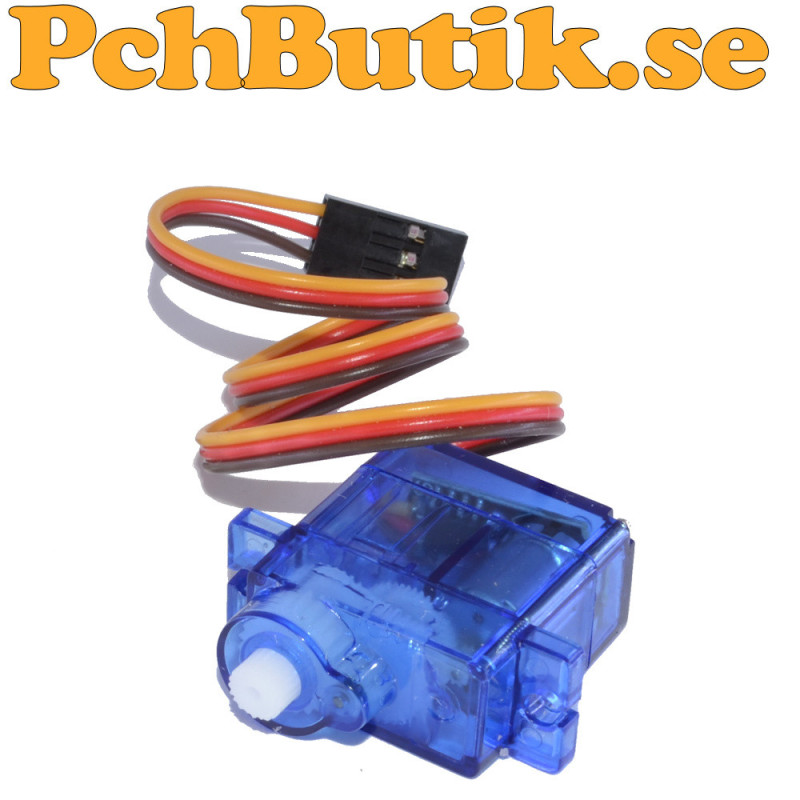

Micro SG90 Servo Motor

This servo rotates clockwise or counterclockwise.
It cannot move to a fixed position.
Its function is similar to a motor, but controlled by PWM.
If it receives a 1.6 ms pulse, it will rotate counterclockwise.
It rotates faster the more the pulse deviates from 1.5 ms, see table below.

Own tests:
0.5 ms = 120 RPM clockwise
1.0 ms = 80 RPM clockwise
1.5 ms stationary, stops rotation
2.0 ms = 80 RPM counterclockwise
2.5 ms = 120 RPM counterclockwise

Own test of current consumption at stalled rotation:
At low speed it draws approx. 40 mA.
At high speed it draws approx. 600 mA.

%text.specifications_title%
Model: Micro SG90 360
Operating voltage: 4.8 to 6 V DC
Gear material: Nylon plastic
Color: Blue
1 pc module.
1 pc Servo with horn and screw.

About the product.
Weight: approx 16 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3441
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-03-30
