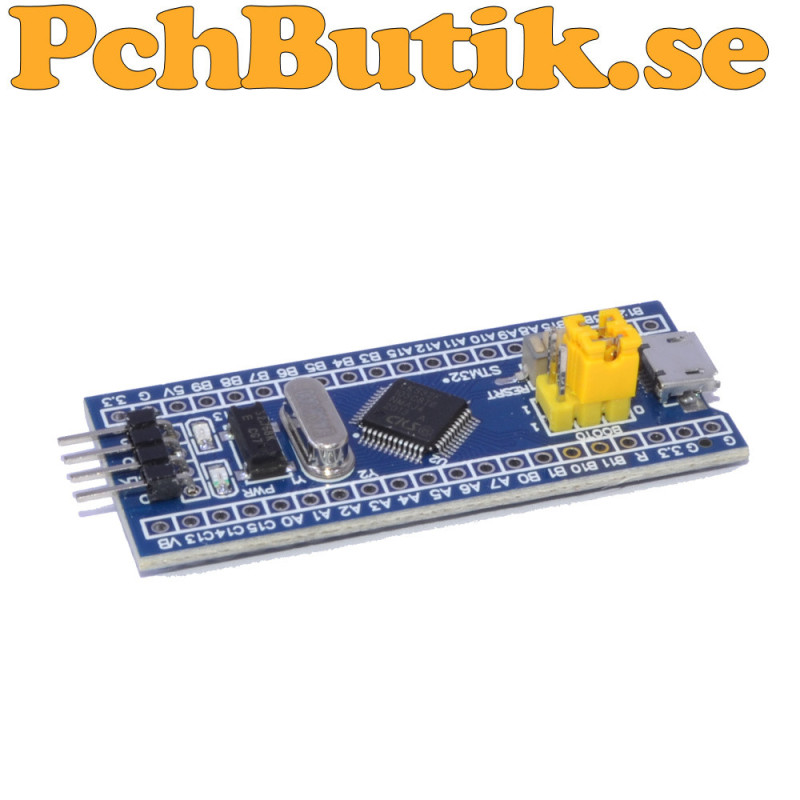

CKS32F103C8T6 Development Board with ARM Cortex-M3 and Micro USB

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The CKS32F103C8T6 is a compact development board based on the CKS32F103C8T6 microcontroller, which is compatible with the STM32F103C8T6. It is suitable for embedded systems, robotics, automation, measurement equipment, IoT, and many other electronic projects requiring high performance and low power consumption.

The board includes a Micro USB connector for power and optional USB communication when supported by the installed firmware. A standard SWD interface allows programming and debugging using ST-Link, J-Link, or J-Link OB programmers. BOOT jumpers provide easy boot mode selection during programming.

An external 8 MHz crystal oscillator together with the internal PLL allows the microcontroller to operate at up to 72 MHz. Dual-row expansion headers provide access to the GPIO pins for connecting sensors, displays, communication modules, and other peripherals.

The CKS32F103C8T6 is designed to be pin and software compatible with the STM32F103C8T6 and works with most development tools and software libraries intended for the STM32F103 family. When tested with ST-Link, the device is identified as STM32F10xx Medium-density with Device ID 0x410 and reports 64 KB of Flash memory. This version is supplied without soldered pin headers.

Facts.
Product Type : CKS32F103C8T6 Development Board
Unique UID: yes
Microcontroller : CKS32F103C8T6
Compatibility : STM32-F103-C8T6
Processor : 32-bit ARM Cortex-M3
Clock Frequency : Up to 72 MHz
Crystal Oscillator : 8 MHz SMD
Flash Memory : 64 KB
SRAM : 20 KB
Operating Voltage : 3.3 V
Voltage Regulator : 3.3 V
Maximum Regulator Output Current : 800 mA
USB Connector : Micro USB
USB Function : Power supply and USB communication
Programming Interface : SWD
Compatible Programmers : ST-Link, J-Link, J-Link OB
BOOT Selection : Yes
Serial Interface : UART
I/O Expansion Header : 2 x 20 pins
Status Indicator : User LED
Board Size : 22.86 x 53.34 mm
Assembly : Supplied without soldered pin headers

Included.
1 pc module.

About the product.
Weight: approx 10 gram.
