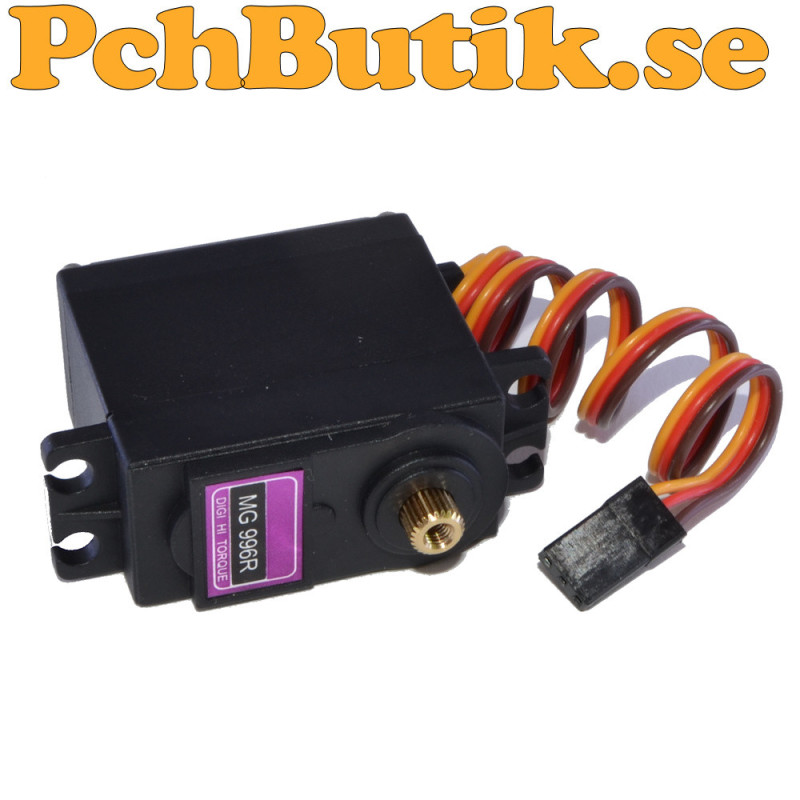

Standard servo MG996R for RC, Arduino, etc.

Universal standard-size servo.
Servo suitable for radio control and other projects.
All gears are made of metal.

Normal control:
1.0 ms is -45 degrees
1.5 ms is 0 degrees
2.0 ms is +45 degrees

If you control it with e.g. an Arduino UNO, the servo must have its own power supply.

Control using PWM pulse width:
0.5 ms is -90 degrees
1.5 ms is 0 degrees
2.5 ms is +80 to +90 degrees

Fakta.
Model: MG996R
Size: Standard
Operating voltage: 4.8 to 7.2 V
Body size: 40.5 x 20 x 39.5 mm
Overall dimensions: 54 x 20 x 45 mm
Movement: -45 to +45 degrees with standard control
Movement: -90 to +90 degrees with 0.5 to 2.5 ms PWM
Current consumption: Idle at 13 V, 5 mA
Current consumption: Stall at 5 V, 1000 mA

Included.
1 pc module.
Horn, hylsor och skruv

About the product.
Weight: approx 68 gram.
