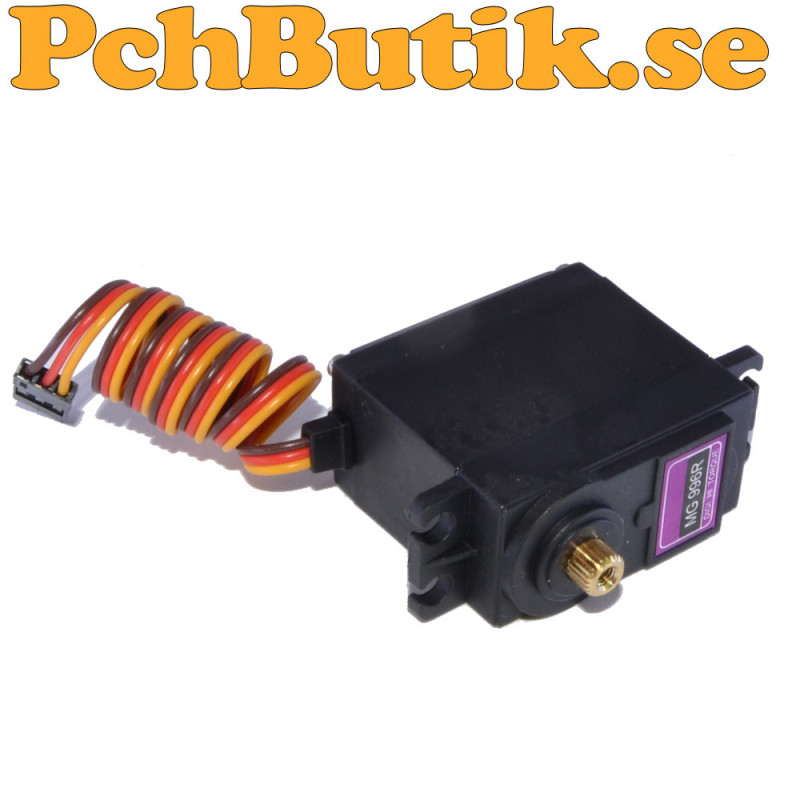

Standard servo MG996R for RC, Arduino, etc.

Universal standard-size servo.
A servo suitable for radio control and other projects.
This servo has a longer range of motion with a 1.0–2.0 ms pulse compared to other servos.
All gears are made of metal.

Standard control:
1.0 ms is -45 degrees
1.5 ms is 0 degrees
2.0 ms is +45 degrees

If you control it with, for example, an Arduino Uno, the servo must have its own power supply.

Control using PWM pulse width:
0.5 ms is -90 degrees
1.5 ms is 0 degrees
2.5 ms is +80 to +90 degrees
Specifications:
Model: MG996R
Size: Standard
Operating voltage: 4.8 to 7.2 V
Speed: 0.17 sec / 60 degrees (4.8V)
Speed: 0.14 sec / 60 degrees (6V)
Torque: 9.4 kg/ cm (4.8V)
Torque: 11.0 kg/ cm (6V)
Body size: 40.5 x 20 x 39.5 mm
Overall dimensions: 54 x 20 x 45 mm
Range: -45 to +45 degrees with standard control
Range: -90 to +90 degrees with 0.5 to 2.5 ms PWM
Current consumption: Idle at 5V – 5 mA
Current consumption: Stall at 5V – 1900 mA
Included:
1 pc Servo
4 pcs Servo horns
5 pcs Screws
4 pcs Rubber bushings
4 pcs Brass sleeves

About the product.
Weight: approx 66 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1393
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-03-30
