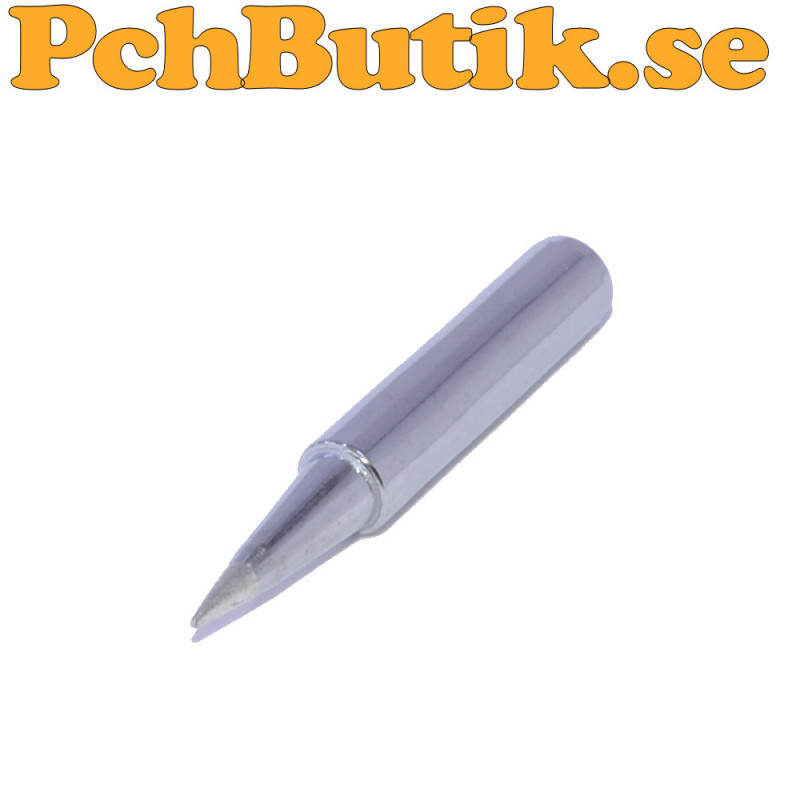

900M-T-0.8D 0.8 mm chisel soldering tip for 900M compatible soldering stations

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The 900M-T-0.8D is a chisel shaped soldering tip designed for soldering irons and stations that use the 900M series. The narrow 0.8 mm flat tip provides excellent precision while maintaining efficient heat transfer, making it ideal for detailed electronic soldering work.

This tip is suitable for soldering printed circuit boards, through hole components, SMD components, pin headers, small connectors and fine wiring. The chisel profile provides a larger contact area than a conical tip, improving heat transfer and helping produce clean and reliable solder joints.

The 900M series was originally developed for Hakko 936, Hakko 937 and several other older Hakko soldering stations. Today the same tip series is also used by many compatible soldering stations from other manufacturers. Since there is no common international standard, dimensions and fit may vary between manufacturers. Always verify compatibility and dimensions before purchasing.

The 0.8 mm tip width makes this model an excellent choice for precision work where a standard chisel tip would be too wide.

Facts.
Product type : Soldering tip
Model : 900M-T-0.8D
Series : 900M
Tip shape : D chisel
Tip width : 0.8 mm
Overall length : 42 mm
Working length : Approx. 15 mm
Inner diameter : 4.1 mm
Outer diameter : 6.4 mm
Material : Copper core with protective plating
Applications : Electronics, printed circuit boards, SMD, through hole components, connectors and wiring
Compatibility : Soldering irons and stations using the 900M series
Suitable for : Hakko 936, Hakko 937 and many compatible soldering stations
Note : Dimensions and fit may vary between manufacturers. Verify compatibility before purchase.

Included.
1 pc module.

About the product.
Weight: approx 10 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 2690
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-08-17
