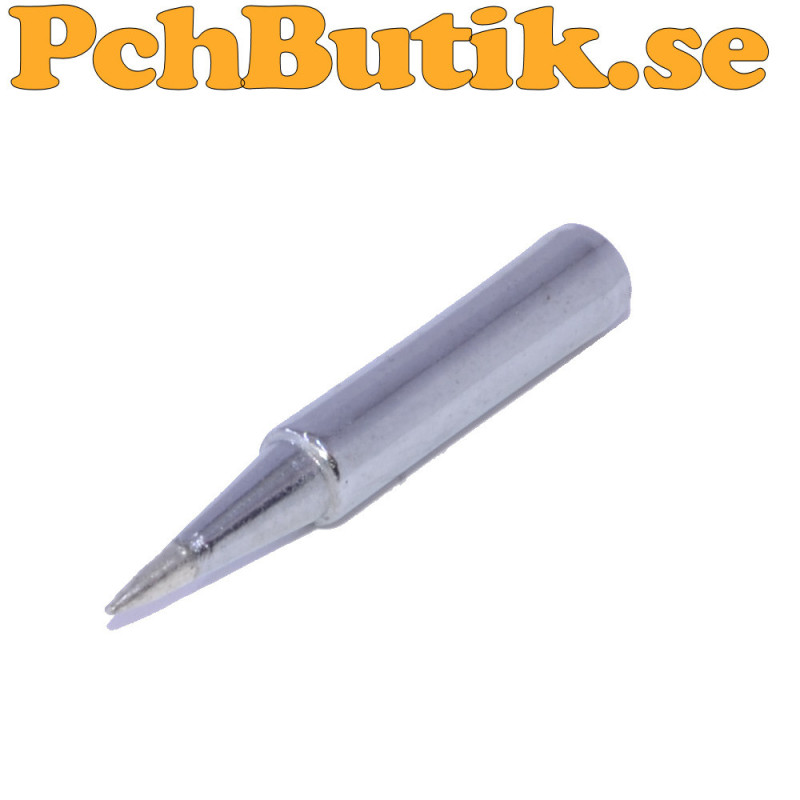

900M-T-1.2D 1.2 mm chisel soldering tip for 900M compatible soldering stations

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The 900M-T-1.2D is a chisel shaped soldering tip designed for soldering irons and stations that use the 900M series. The 1.2 mm flat tip provides efficient heat transfer and excellent control, making it suitable for both precision soldering and general electronics assembly.

The tip is ideal for soldering printed circuit boards, through hole components, larger SMD components, pin headers, connectors and wiring. The chisel profile offers a larger contact area than a conical tip, improving heat transfer and helping to produce reliable, high quality solder joints.

The 900M series was originally developed for Hakko 936, Hakko 937 and several other older Hakko soldering stations. Today the same tip series is also used by many compatible soldering stations from other manufacturers. Since there is no common international standard, dimensions and fit may vary between manufacturers. Always verify compatibility and dimensions before purchasing.

This model has an overall length of 43 mm, an active working length of approximately 17 mm, an inner diameter of 4.1 mm and an outer diameter of 6.5 mm.

Facts.
Product type : Soldering tip
Model : 900M-T-1.2D
Series : 900M
Tip shape : D chisel
Tip width : 1.2 mm
Overall length : 43 mm
Working length : Approx. 17 mm
Inner diameter : 4.1 mm
Outer diameter : 6.5 mm
Material : Copper core with protective plating
Applications : Electronics, printed circuit boards, SMD, through hole components, connectors and wiring
Compatibility : Soldering irons and stations using the 900M series
Note : Dimensions and fit may vary between manufacturers. Verify compatibility before purchase.

Included.
1 pc module.

About the product.
Weight: approx 10 gram.
