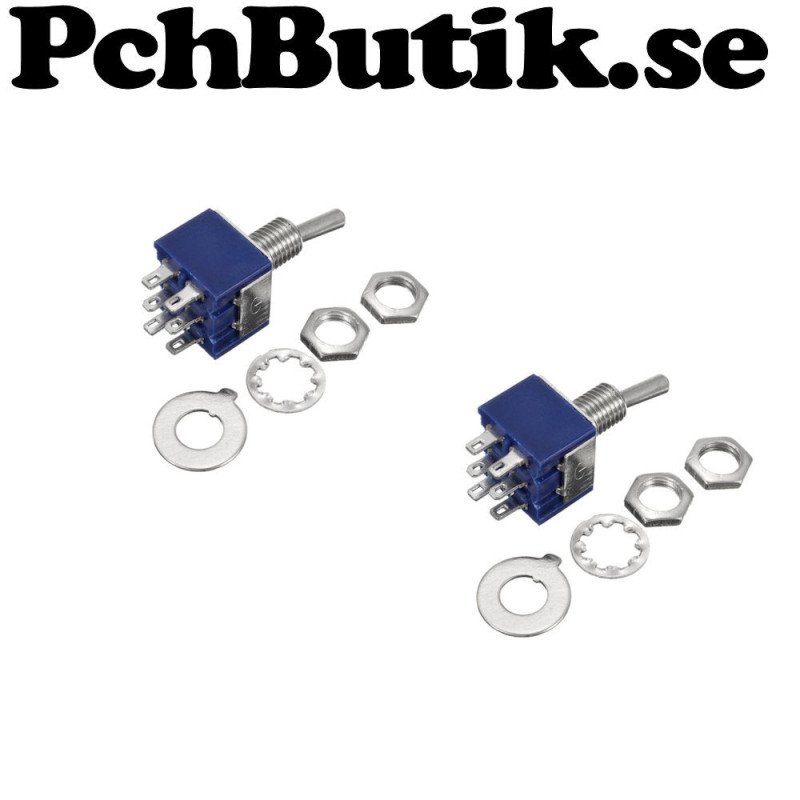

MTS 203 miniature toggle switch 6 pin on on

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

This miniature toggle switch is a compact and durable switch suitable for electronics projects panel mounting and control circuits. It has a stable mechanical construction and clear position steps that ensure reliable switching between two states. The small size makes it ideal for devices where space is limited but dependable manual control is required.

DPDT stands for Double Pole Double Throw and is a type of electrical switch.
Meaning:
Double Pole means the switch controls two separate circuits at the same time.
Double Throw means each circuit can switch between two different connections.

Simply explained:
A DPDT works like two SPDT switches combined and operated by the same lever.

Applications:
Switch motor polarity
Select between two signal paths
Reverse direction in circuits
Choose between two power sources

Typical wiring:
It usually has 6 pins where the center pin on each side is common and connects to one of the two outer pins depending on switch position.
Facts.
Model: MTS 203
Type: Toggle switch
Pole type: DPDT
Positions: 2 on on
Rated current: 6A 125VAC
Rated current alternative: 3A 250VAC
Pin count: 6
Mounting: Panel
Size: approx 1.3 by 0.8 by 3.3 cm
Color: Blue body metal lever

Included.
1 pc module.

About the product.
Weight: approx 13 gram.
