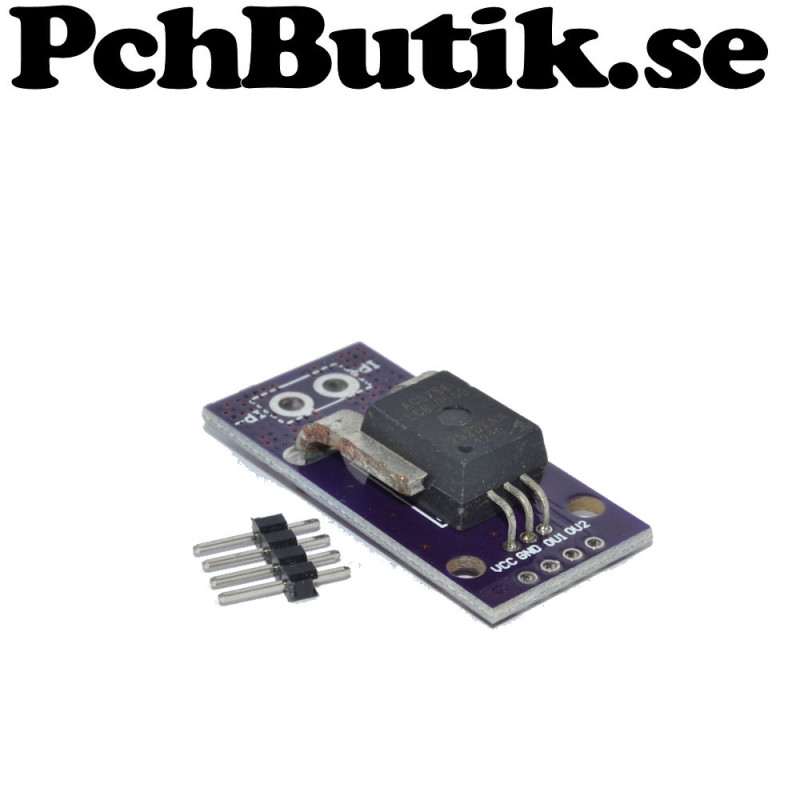

Hall Current Sensor ACS758LCB-050B-PFF-T Linear Current Sensor

All text and information about this module is generated by AI.
The information may be incomplete inaccurate or subject to change.
This Hall based current sensor module is intended for accurate current measurement. The module is based on a monolithic Hall IC with an integrated shield that reduces interference and provides a stable and precise output even during rapid voltage changes. Thanks to galvanic isolation and low internal resistance it is well suited for high power applications industrial projects and advanced electronics builds. The compact design makes the module easy to mount and integrate into various systems.

Own tests with 5 Volt supply DC:
Zero Ampere through sensor gives 2.5 Volt output
0.5 Ampere DC gives 2.52 Volt
1 Ampere DC gives 2.537 Volt
2 Ampere DC gives 2.581 Volt
3 Ampere DC gives 2.621 Volt
4 Ampere DC gives 2.659 Volt
5 Ampere DC gives 2.702 Volt
The sensor is rated for up to 50 Ampere.
It is recommended to reinforce the PCB traces
when operating at high currents.

Facts.
Product type: Hall current sensor module
Measurement principle: Hall effect
Measured current: DC
Supply voltage: 3.0 to 5.5 V
Bandwidth: approx. 120 kHz
Response time: approx. 3 us
Isolation: Galvanic isolation
Internal resistance: Very low
Output: Voltage proportional to current
Mounting: PCB module
Board size: 38.22 x 18.03 mm

Included.
1 pc module.

About the product.
Weight: approx 9 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1128
