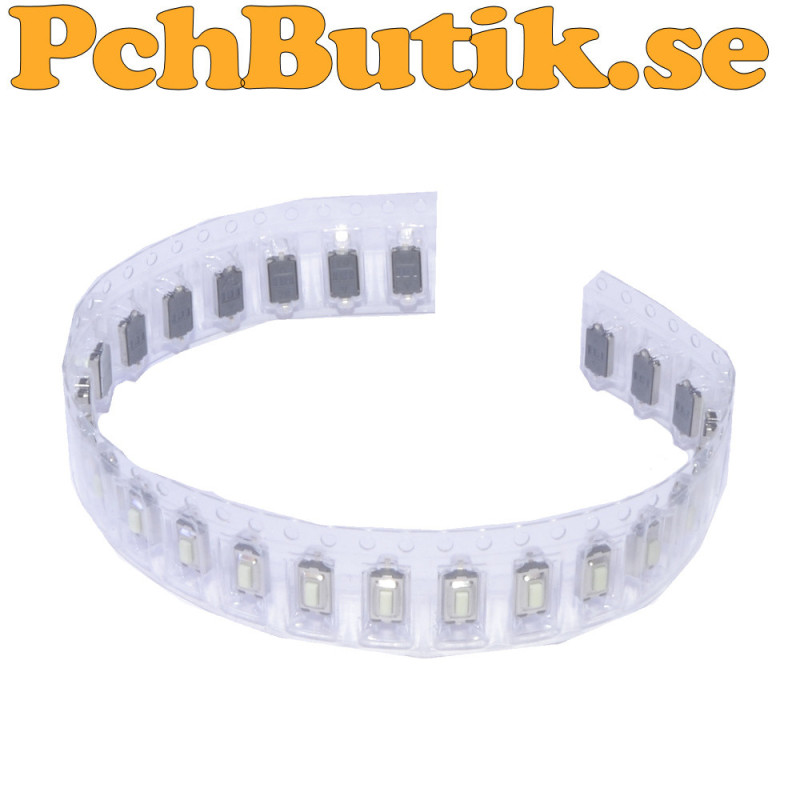

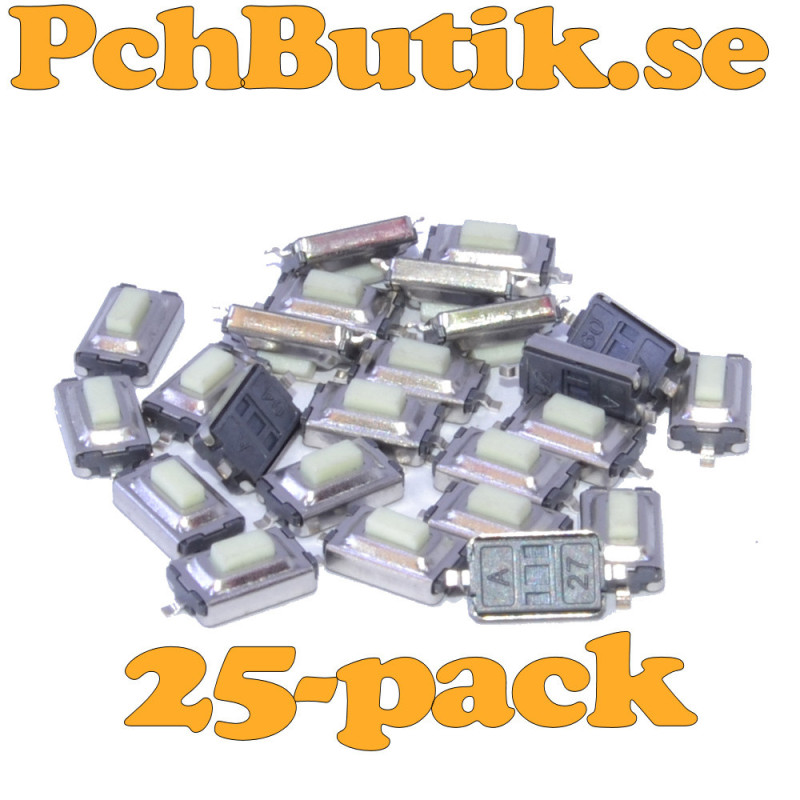

White reel packing 25pcs 3x6x2.5mm 2Pin SMD Micro Touch Switch

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
Compact 2-pin SMD micro touch switch designed for direct mounting on printed circuit boards. The switch has a compact size of 3x6x2.5 mm and is suitable for electronic applications where small dimensions and reliable operation are important. It can be used as a push button for control, adjustment and user interface functions in electronic products.

The switch is an SMD type designed for direct mounting on a circuit board. It is specified for an operating temperature range of -25 to 85 degrees C and has a rated load of DC 12 V and 0.1 A. The contact resistance is maximum 0.03 ohm and the insulation resistance is minimum 100 Mohm. The specified electrical life is up to 100000 operations.

The switch is supplied on a reel and is suitable for series production and automated assembly. Its compact size makes it useful in products where circuit board space is limited.

Facts.
Type: SMD micro touch switch
Design: 2-pin push switch
Size: 3x6x2.5 mm
Color: White
Mounting: SMD
Rated voltage: DC 12 V
Rated load: 0.1 A
Temperature range: -25 to 85 degrees C
Contact resistance: Maximum 0.03 ohm
Insulation resistance: Minimum 100 Mohm
Life: Up to 100000 operations
Packaging: Reel

Included.
25 pcs

About the product.
Weight: approx 8 gram.
