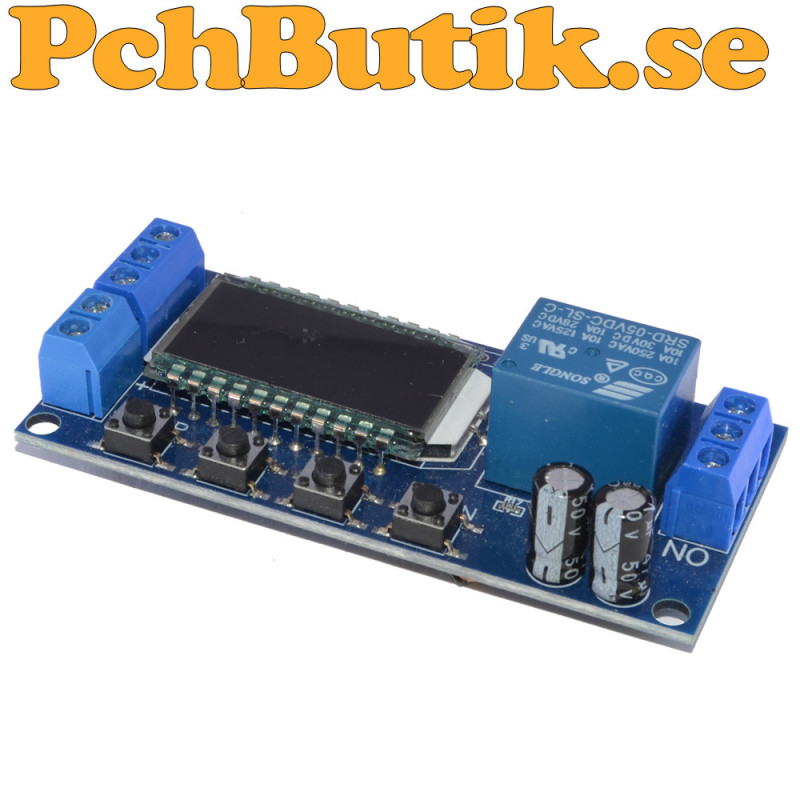

Programmable Timer Relay Module with LCD

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

This programmable timer relay module is designed for flexible control of electrical loads using time delay functions and multiple trigger modes. The module features a clear LCD display that shows the current mode and settings in real time. It supports both high level and low level triggering as well as passive switch control making it suitable for most control and automation projects. With a wide supply voltage optocoupler isolation and permanent memory for settings after power loss it is well suited for industrial applications electronics projects and control systems.

Facts.
Product type: Timer relay module
Supply voltage: 6 to 30 V DC
Alternative supply: Micro USB 5 V
Trigger modes: High level low level passive switch
High trigger level: 3.0 to 24 V
Low trigger level: 0.0 to 0.2 V
Output capacity DC: Up to 30 V 5 A
Idle current: Approx. 35 mA
Operating current: Approx. 120 mA
Service life: Over 100000 cycles
Operating temperature: -40 to 85 degrees C
Isolation: Optocoupler
Display: LCD
Memory function: Yes permanent storage
Emergency stop: Yes STOP button
Protection: Reverse polarity protection
Power saving mode: Automatic backlight off
Dimensions: 8.0 x 3.8 x 1.9 cm

Included.
1 pc module.

About the product.
Weight: approx 29 gram.
