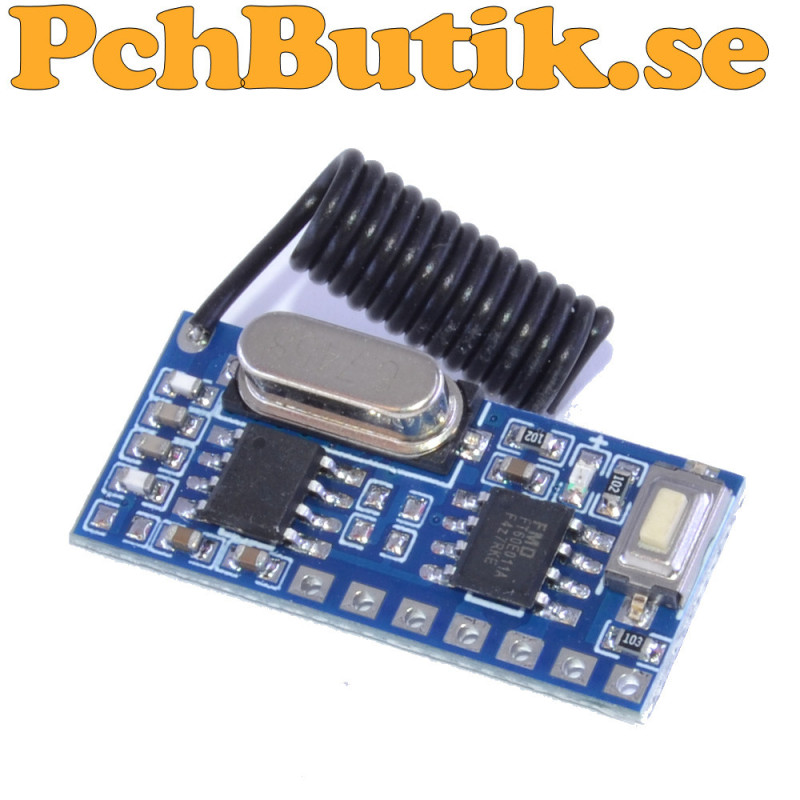

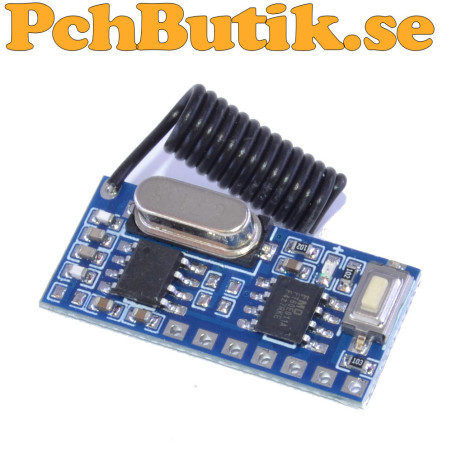

433 MHz wireless receiver module with EV1527 and PT2262 support

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
RX480E is a compact 433 MHz wireless receiver module designed for remote control and wireless data applications. The module operates from a 3.3 V to 5 V power supply and supports several common encoding chips including EV1527, PT2262, PT2260 and PT2240. It features four CMOS digital outputs corresponding to the A, B, C and D buttons on compatible remote controls. The receiver can store up to 20 remote controls and supports Momentary, Self-locking and Interlock operating modes. The included helical antenna provides easy installation and reliable reception for a wide range of wireless control projects.

Facts.
Product model: RX480E
Frequency: 433 MHz
Supply voltage: 3.3 V to 5 V DC
Current consumption: 3 mA
Receiver sensitivity: -108 dBm
Maximum data rate: 10 kbit/s
Encoding support: EV1527, PT2262, PT2260, PT2240
Outputs: 4 CMOS signals
Channels: 4
Operating modes: Momentary, Self-locking, Interlock
Memory capacity: Up to 20 remote controls
Antenna: 433 MHz helical antenna
Applications: Remote control, alarm systems, automation, relay control

Included.
1 pc module.

About the product.
Weight: approx 11 gram.
