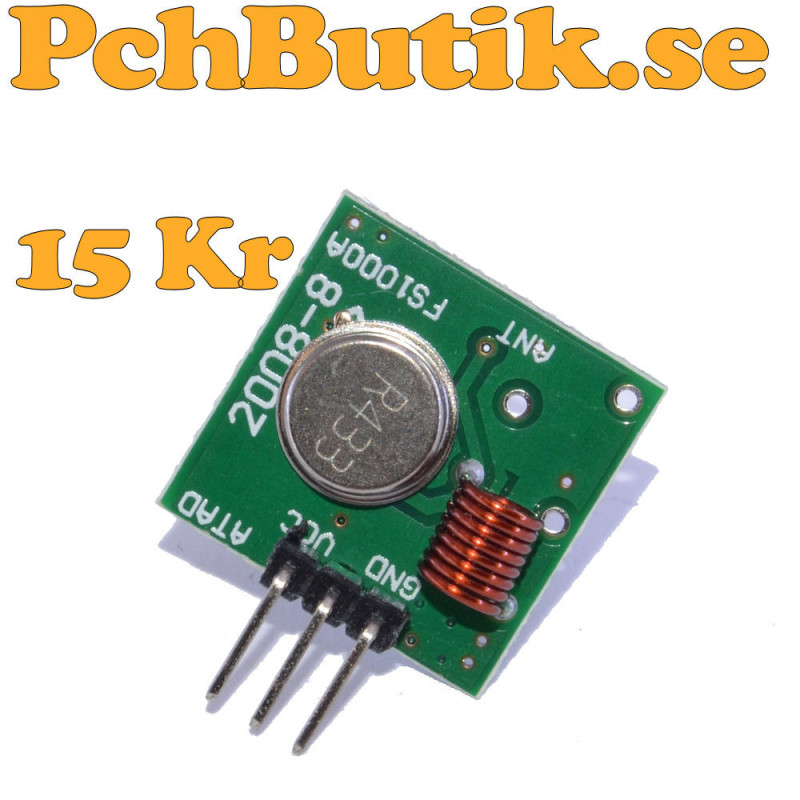

433 MHz transmitter module for wireless data transmission and remote control

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The 433 MHz Transmitter Module is a compact RF transmitter designed for wireless data transmission in the 433 MHz ISM band. It is easy to use and ideal for remote control systems, alarms, home automation and wireless communication between microcontrollers.

The module uses ASK OOK modulation and connects directly to a digital output on controllers such as Arduino, ESP8266, ESP32 and Raspberry Pi Pico. It operates from a supply voltage of 3.5 to 12 V DC. Higher supply voltage provides higher output power and longer operating range.

For the best performance, a 17.3 cm quarter wave antenna is recommended. The actual range depends on the supply voltage, antenna, surrounding environment and receiver sensitivity.

Utrustning för lödning kan behövas för att använda denna.
Antenna lengths for 433 MHz modules:
17.3 cm - Quarter wave antenna
34.5 cm - Half wave antenna
43.2 cm - 5/8 wave antenna
69.1 cm - Full wave antenna

Facts.
Product: 433 MHz Transmitter Module
Frequency band: 433 MHz
Frequency: 433.92 MHz
Model: MX FS
Modulation: ASK OOK
Supply voltage: 3.5 to 12 V DC
RF output power: Approximately 10 mW
Data rate: Up to 4 kbit/s
Range: 20 to 200 meters depending on antenna and environment
Dimensions: 19 x 19 mm
Antenna: External 17.3 cm quarter wave antenna recommended
Connections: DATA VCC GND ANT

Included.
1 pc module.

About the product.
Weight: approx 7 gram.
