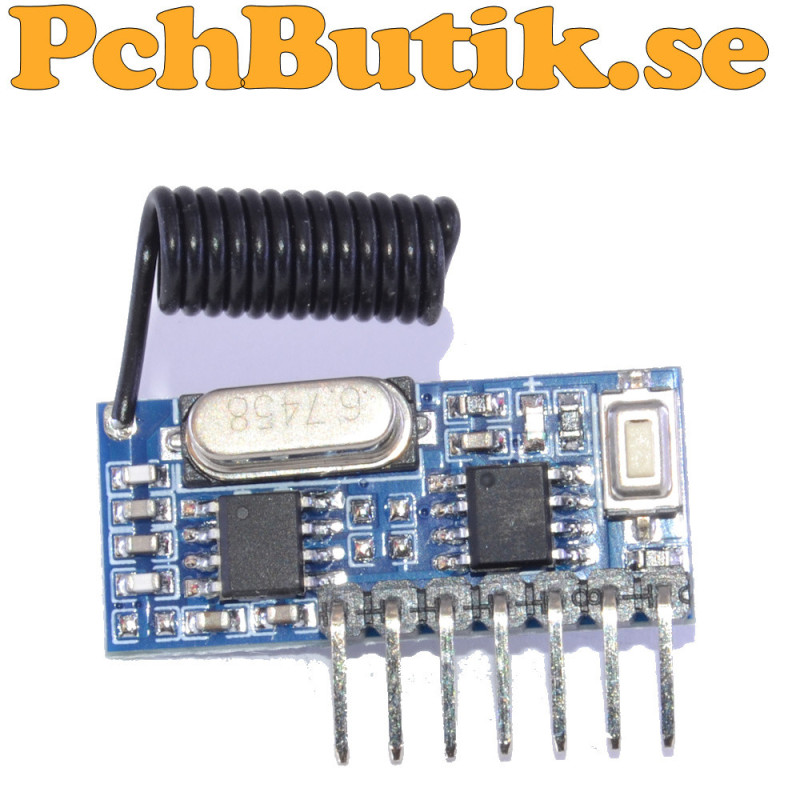

RX480E 433MHz receiver module with antenna and 4 channels

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
CL JM01 RX480E is a wireless receiver module for the 433MHz band designed to receive signals from remote controls and wireless sensors. The module features built in decoding and can store up to 20 remote controls making it suitable for relay control alarms and smart home applications. It offers high sensitivity and stable reception thanks to superheterodyne technology and provides four separate digital outputs corresponding to remote control buttons. Easy to use with microcontrollers or as a standalone receiver in wireless control projects.

Facts.
Frequency: 433.92 MHz
Supply voltage: DC 3.3 to 5 V
Current consumption: approximately 3 mA
Sensitivity: -108 dBm
Data rate: up to 10 kb per second
Outputs: 4 channels D0 D1 D2 D3
Signal level: CMOS level
Encoding: EV1527 PT2262 PT2260 PT2240
Working modes: Jog self locking interlock
Memory capacity: up to 20 remote controls
Antenna: external antenna included

Included.
1 pc module.

About the product.
Weight: approx 11 gram.
