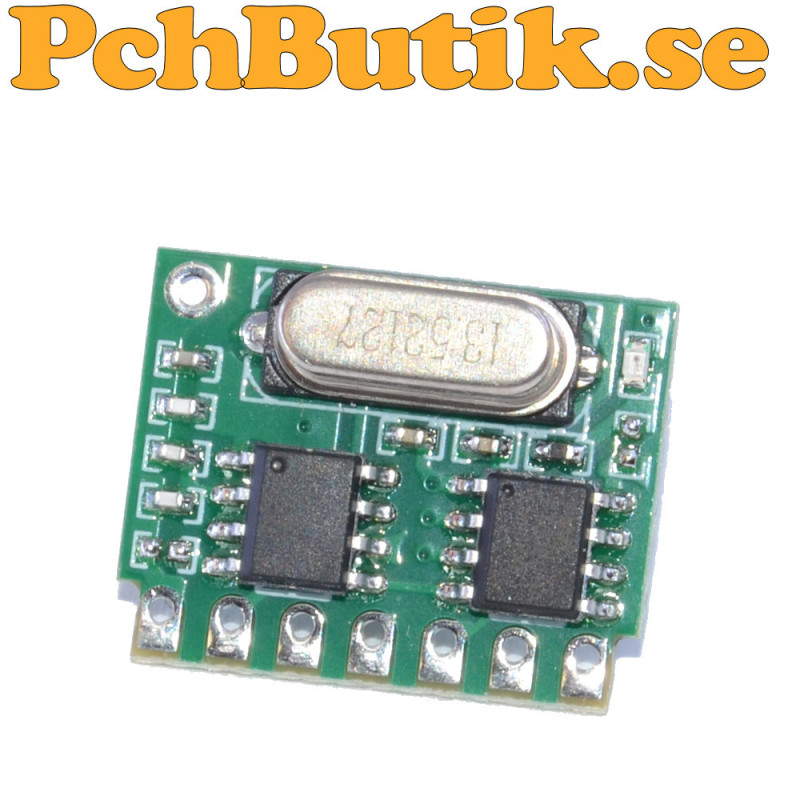

433MHz TYJM01 receiver module with decoder and four channels

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
TYJM01 is a compact 433MHz receiver module with a built in decoder capable of receiving signals from various types of remote controls. It supports both learning code and fixed code such as EV1527 and PT2262 making it highly flexible and compatible with many transmitters. The module provides four separate outputs and can be used in applications such as wireless control alarms and automation. It features low power consumption and can be easily integrated with microcontrollers or used as a standalone receiver.

Facts.
Model: TYJM01
Frequency: 433 MHz
Encoding: EV1527 PT2262 and compatible
Outputs: 4 channels
Supply voltage: 2 to 5.5 V
Current consumption: approximately 2.8 to 3.5 mA
Memory: built in EEPROM
Data rate: up to 10 kbps
Temperature range: -40 to 85 degrees C
Size: 18.8 x 14.8 x 5 mm

Included.
1 pc module.

About the product.
Weight: approx 7 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3675
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-07-06
