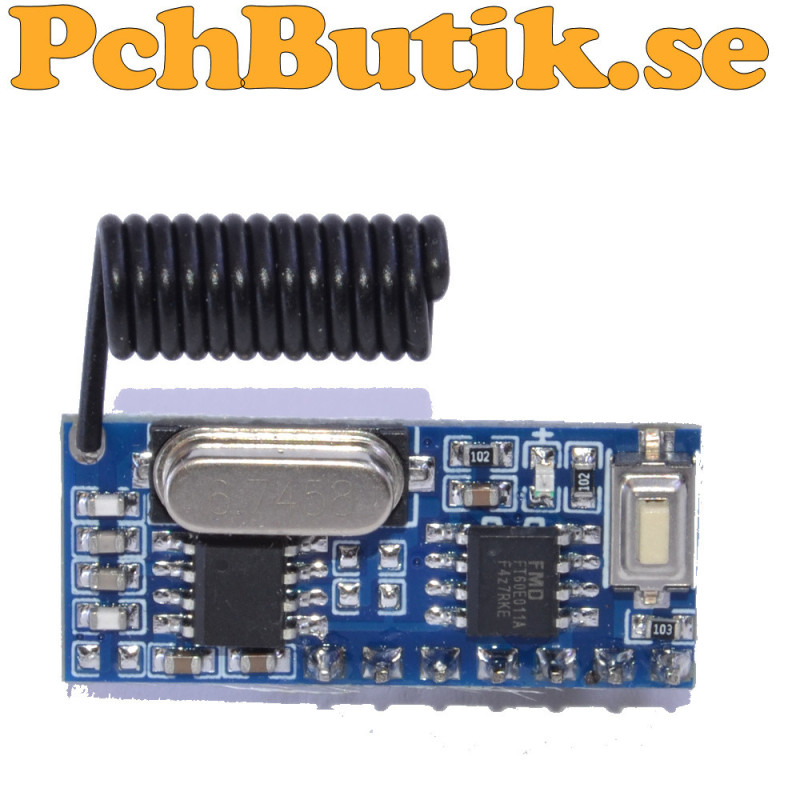

RX480E 433MHz receiver module with antenna and four channels

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
RX480E is a wireless receiver module for 433MHz designed to receive signals from remote controls using different encoding types. It features a built in decoder and supports both learning code and fixed code such as EV1527 and PT2262 making it flexible and easy to use. The module provides four separate outputs corresponding to remote control buttons and can operate in different modes such as momentary self locking or interlock. It has low power consumption and is suitable for applications in wireless control alarms and automation.

Facts.
Model: RX480E
Frequency: 433 MHz
Supply voltage: DC 3.3 to 5 V
Current consumption: approximately 3 mA
Sensitivity: -108 dBm
Data rate: up to 10 kb per second
Encoding: EV1527 PT2262 PT2260 PT2240
Outputs: 4 channels D0 D1 D2 D3
Working modes: jog self locking interlock
Memory capacity: up to 20 remote controls
Signal level: CMOS
Antenna: external mounted
Pinheader: straight

Included.
1 pc module.

About the product.
Weight: approx 11 gram.
