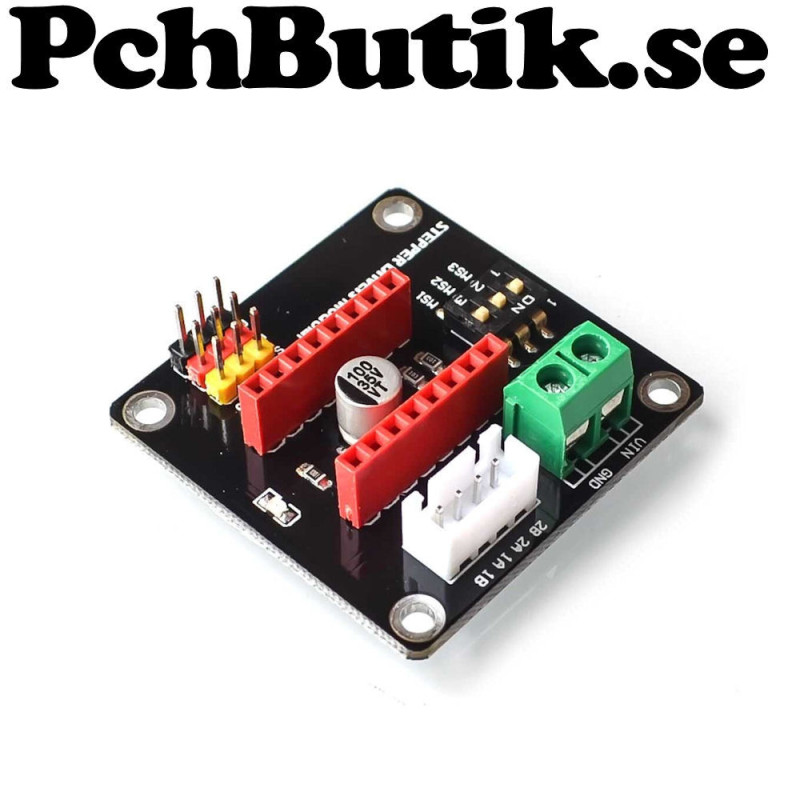

Stepper motor driver expansion board for A4988 DRV8825

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This stepper motor driver expansion board is designed for use with A4988 and DRV8825 modules in 3D printers and other DIY projects. The board simplifies installation by providing clear connections for power motor and control signals. Built in DIP switches allow easy adjustment of microstepping without additional components. The design is suitable for 42 stepper motors and supports both 12 and 24 volt drive systems making it flexible for many applications.

Facts.
Product type: Stepper motor driver expansion board
Compatible modules: A4988 DRV8825
Motor compatibility: 42 stepper motor
Logic voltage: 5 V
Input voltage: 12 to 30 V
Interface: Digital
Control signals: Direction enable speed
Adjustability: DIP switch for microstepping
Application: 3D printers and DIY projects
Dimensions: 42 x 42 x 15 mm
Mounting pitch: 35.56 x 35.56 mm
Mounting hole size: 3 mm

Included.
1 pc module.

About the product.
Weight: approx 15 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1887
