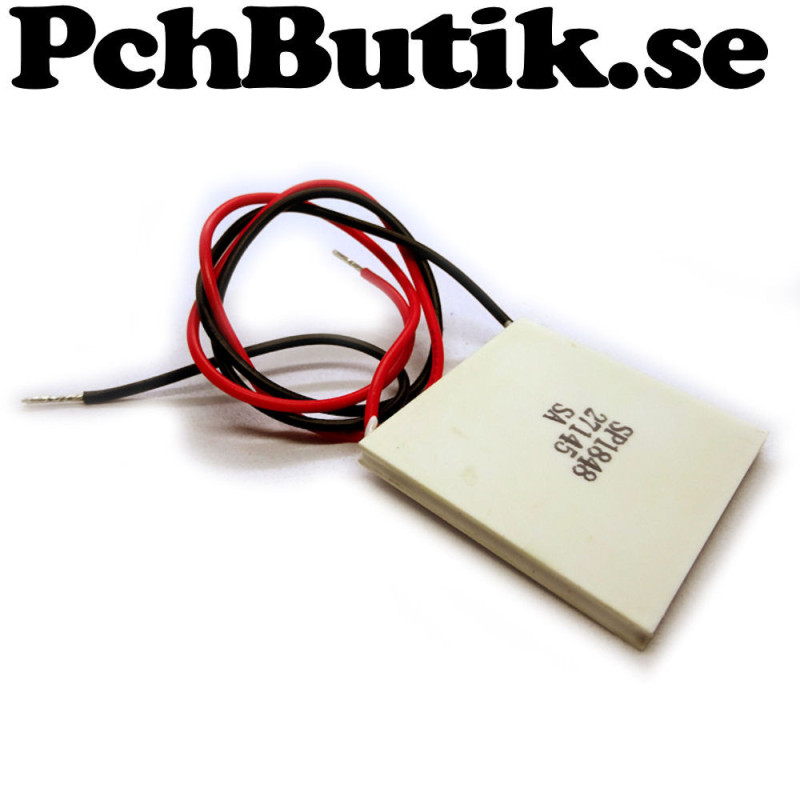

Thermoelectric Generator Module SP1848

All text and information about this module is generated by AI.
The information may be incomplete inaccurate or subject to change.
This thermoelectric generator module is designed to convert temperature differences into electrical energy according to the Seebeck effect. When one side is heated relative to the other a voltage is generated making the module suitable for energy harvesting experiments and electronics projects. The module is small lightweight and moisture protected and is designed for stable operation in demanding environments. The red wire is positive and the black wire is negative. Electrical energy is generated automatically when a temperature difference occurs between the two sides.
The module is primarily intended for power generation and not for use as a cooling module.

Example
190 uV per degree C = 0.00019 V per degree C
0.00019 × 40 = 0.0076 V per thermoelectric element
The SP1848 consists of approximately 100 thermoelectric pairs internally
Total voltage
0.0076 × 100 = 0.76 V

Facts.
Product type: Thermoelectric generator module
Model: SP1848-27145
Function: Power generation from temperature difference
Temperature range: -60 to 125 degrees C
Maximum temperature: Up to 150 degrees C
Seebeck coefficient: Approx. 190 uV per degree C
Optimal efficiency factor: 2.5 to 3 x 10 to the power of minus 3 W per degree C
Lead length: Approx. 30 cm
Polarity marking: Red positive black negative
Design: Moisture protected sealed module
Application: Energy harvesting electronics projects experiments

Included.
1 pc module.

About the product.
Weight: approx 26 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1098
