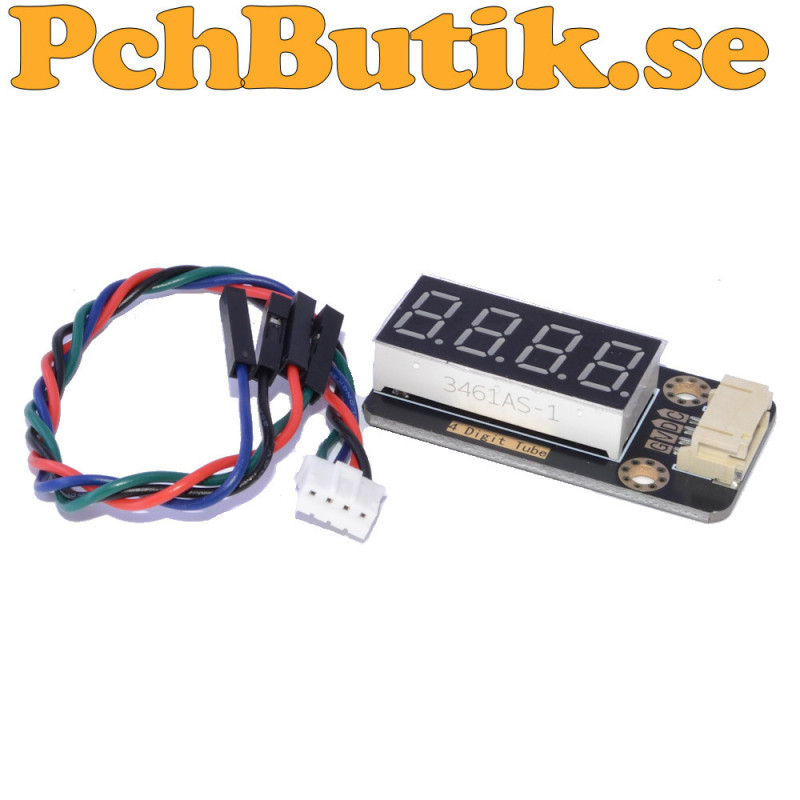

TM1650 4 digit 0.36 inch 7 segment display module with I2C and adjustable brightness

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The TM1650 0.36 inch 4 digit Common Cathode Digital Tube Module is a compact 7 segment display module for microcontrollers and electronics projects. The module has four digits and uses a TM1650 display driver to control the segments and multiplexing.

The display has a digit height of 0.36 inch and is suitable for displaying counters, temperature, voltage, time and other numerical values. The TM1650 allows the microcontroller to control the display through a simple two wire I2C interface without requiring a separate connection to each LED segment.

The module has a 4 pin PH2.0 connector marked GVDC. The GVDC designation indicates the connections GND, VCC, Data and Clock. V is the 5 V supply voltage, G is GND, D is the I2C SDA data line and C is the I2C SCL clock line.

The display module provides 8 levels of brightness adjustment. This makes it possible to adapt the display to different ambient light conditions and applications. It is suitable for Arduino, ESP8266, ESP32 and other microcontrollers with I2C communication.

The module has 3 mm mounting holes for easy installation in different constructions and prototypes. Its compact size makes it suitable for applications where a clear numerical display needs to be integrated into a limited space.

Facts.
Chip: TM1650
Display type: 7 segment LED display
Number of digits: 4
Display size: 0.36 inch
Display type: Common Cathode
Interface: I2C
Connector: PH2.0 4 pin
Connector marking: GVDC
V: VCC 5 V
G: GND
D: I2C SDA data
C: I2C SCL clock
Brightness: 8 levels
Segment drive current: >25 mA
Digit drive current: >150 mA
Mounting hole: 3 mm
Module size: 45 x 23 mm

Included.
1 pc module.
15 cm cable included


About the product.
Weight: approx 14 gram.
