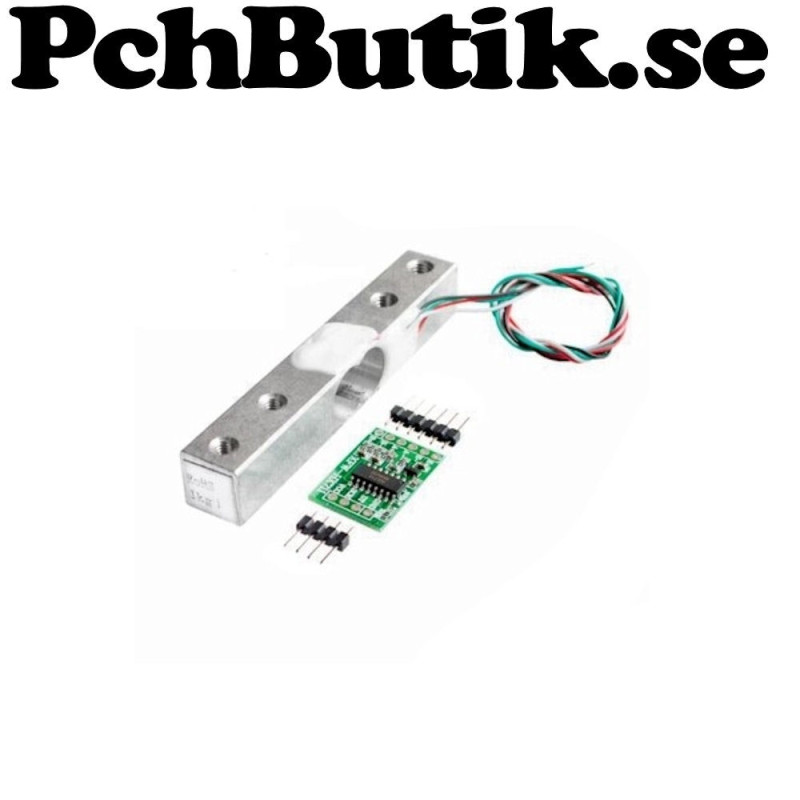

Load cell with HX711 module for weight and pressure measurement

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This product consists of a load cell combined with an HX711 module and is intended for load and pressure measurement in electronic projects. The combination is commonly used in scales automation and experiments where high accuracy is required. The module makes it easy to connect the sensor to a microcontroller and obtain stable measurement values.

Facts.
Product: Load cell with HX711 module
Measurement range: to 5 kg
Output sensitivity: 1.0 mV per V
Zero output: 0.1 mV per V
Repeatability: 0.05 percent F.S
Creep: 0.05 percent F.S per 3 min
Nonlinearity: 0.05 percent F.S
Hysteresis: 0.05 percent F.S
Output impedance: 1000 ohm
Zero temperature drift: 0.05 percent F.S per 10 C
Sensitivity temperature drift: 0.05 percent F.S per 10 C
Cable colors: Red positive supply green negative supply black signal positive white signal negative
Sensor size: 81x13.5x13.5 mm

Included.
2 Parts

About the product.
Weight: approx 33 gram.
