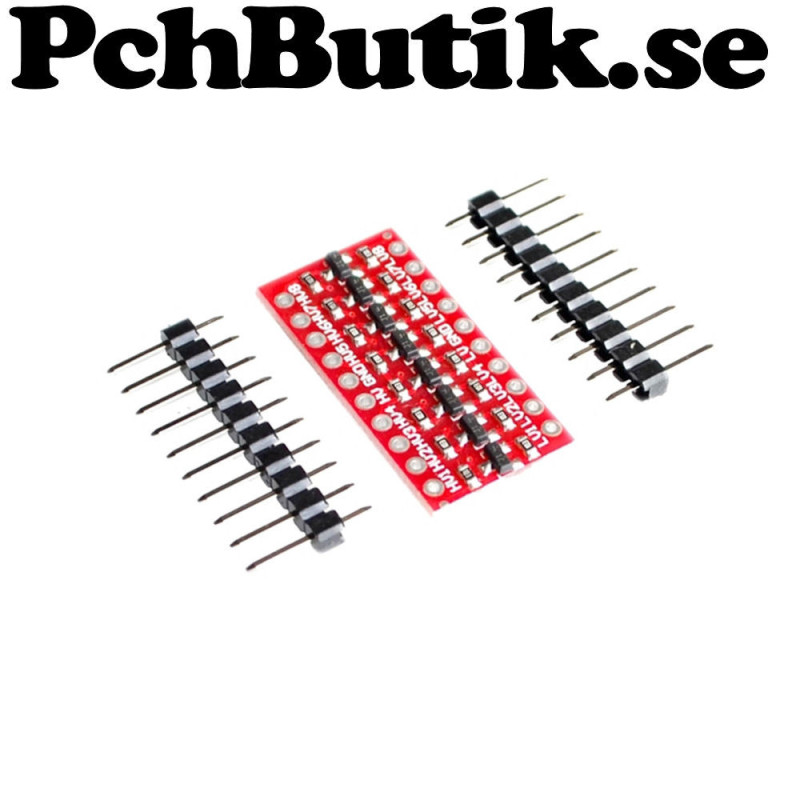

8 bit bidirectional level converter for electronics

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

This 8 bit level converter module is used to safely connect electronics operating at different logic levels. The module supports bidirectional signal transfer and can both reduce 5V signals to 3.3V and boost 3.3V signals to 5V at the same time. It is also compatible with 1.8V and 2.8V systems. Each channel can handle both high and low levels making the module flexible and easy to use in prototyping and embedded applications.

Facts.
Product name: 8 bit level converter
Number of channels: 8
Function: Bidirectional level shifting
Supported voltages: 1.8V 2.8V 3.3V 5V
High voltage side: HV
Low voltage side: LV
Ground: GND
Application: MCU I2C SPI and logic signals
Dimensions: 28x19 mm

Included.
1 pc module.

About the product.
Weight: approx 4 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1872
