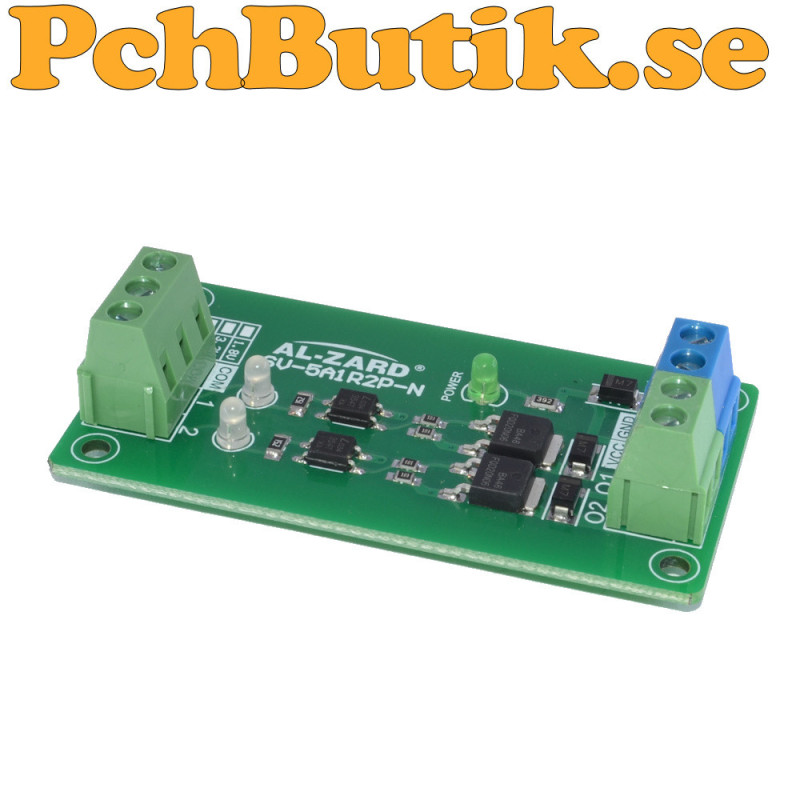

2-Channel NPN Output Module with MOSFET and 12 V Control Voltage

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This 2-channel NPN output module is designed for controlling DC loads using a 12 V control voltage. Each channel is driven by an FQD20N06 N-channel MOSFET, providing fast and efficient switching with low power loss. The module features NPN open-collector outputs, making it suitable for driving relays, solenoid valves, lamps, motors and other DC loads. A protection diode is fitted across each output, making the board suitable for inductive loads. Its contactless design provides high reliability, fast response and long service life.

Facts.
Type: 2-channel NPN output module
Output type: NPN (open collector)
Number of channels: 2
Control voltage: 12 V DC
Output device: FQD20N06 N-channel MOSFET
MOSFET voltage rating: 60 V
Maximum switching frequency: 2000 Hz
Response time: <1 ms
Protection diodes: Yes, one M7 diode per channel
Suitable loads: Relays, solenoid valves, lamps, motors and other DC loads
Mounting: Bare circuit board
Isolation: No galvanic isolation
Applications: automation and electronic projects

Included.
1 pc module.

About the product.
Weight: approx 23 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3611
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-08-03
