High decibel piezo buzzer 3 to 24 V

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

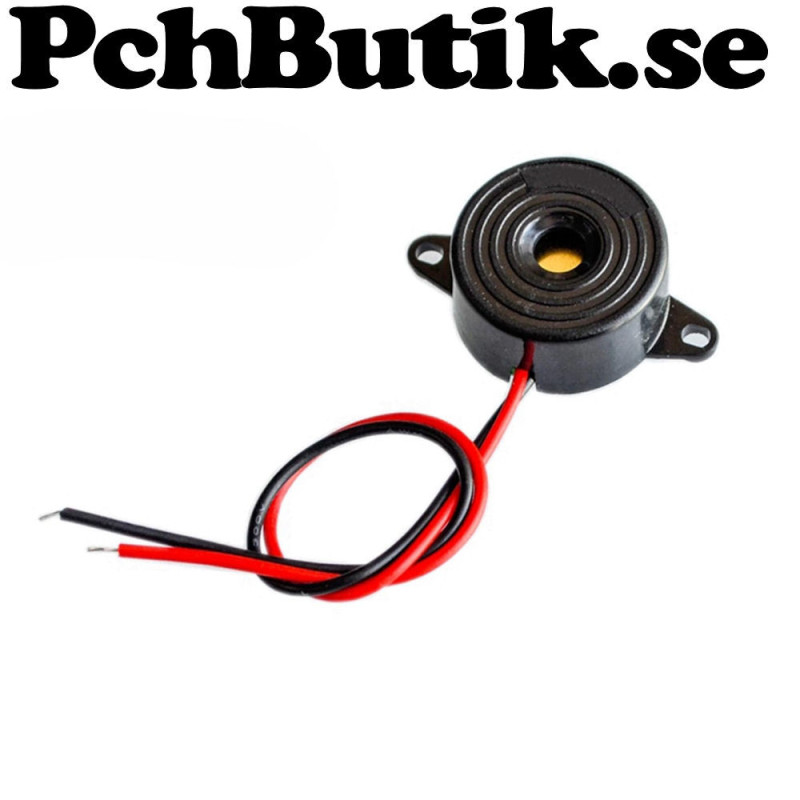

This is a high decibel piezoelectric buzzer designed for alarm and clear sound signaling. It provides a continuous sound output and supports a wide operating voltage range making it suitable for many electronics projects. With low current consumption and mounting holes it is easy to integrate into both prototypes and finished applications. Connection is made via wires.

Facts.
Product name: SFM-20B DC3-24V
Type: Piezoelectric buzzer
Sound pressure level: 95 dB
Rated voltage: 12 V DC
Operating voltage: 3 V to 24 V
Max current: 10 mA
Frequency: 3900 Hz plus minus 500 Hz
Diameter: 22 mm
Height: 10 mm
Mounting hole distance: 30 mm
Wire length: 90 mm
Connection: Cable

Included.
1 pc module.

About the product.
Weight: approx 8 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1864
