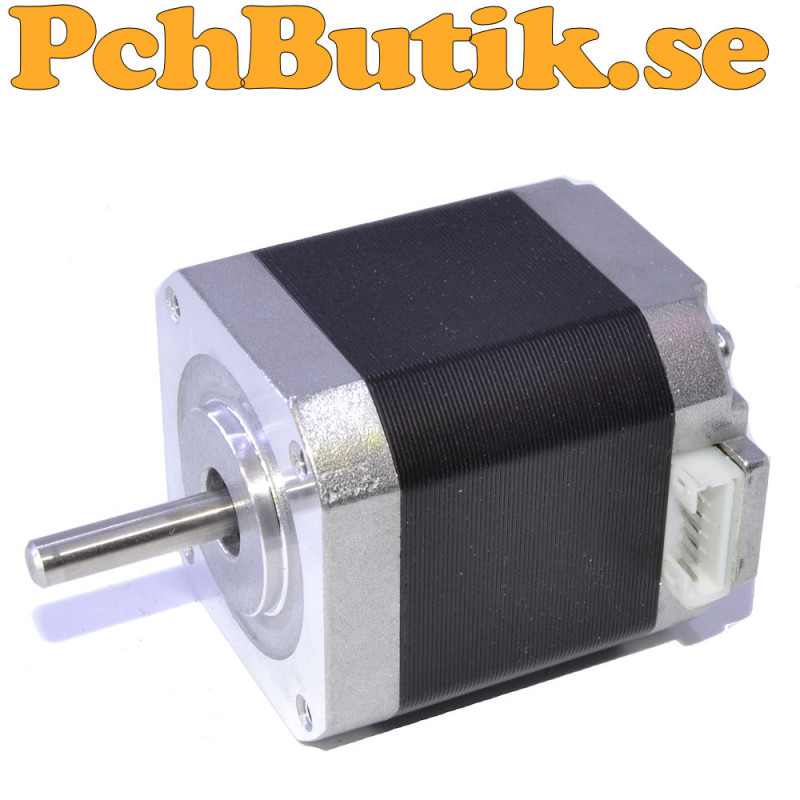

NEMA 17 hybrid stepper motor 17HS8401 with 1.8 degree step angle

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

The 17HS8401 is a NEMA 17 hybrid stepper motor designed for precise control of position, speed and rotation. The motor has two phases, a 1.8 degree step angle and is suitable for applications requiring controlled and accurate movement. It is suitable for CNC machines, 3D printers, robotics, automation and various electronics and DIY projects.


Facts.
Model: 17HS8401
Motor type: Hybrid stepper motor
Size: NEMA 17
Number of phases: 2 phases
Connections: 4 wires
Electrical type: Bipolar
Step angle: 1.8 degrees
Full steps per revolution: 200
Rated current: 1.7 A per phase
Phase resistance: 1.8 ohms
Motor length: 48 mm
Shaft diameter: 5 mm
Shaft shape: D, 4.5 mm
Shaft length: 20 mm
Rated voltage: approximately 3.1 V per phase at rated current
Drive type: Current regulated stepper motor driver, Not included
Applications: CNC, 3D printers, robotics, automation and electronics
Connection: JST PH 6-pin, 2.0 mm
Cable: JST PH 6-pin, 2.0 mm to XH 4-pin 2.54 mm
Cable length: 1 meter, included

Included.
1 pc module.

About the product.
Weight: approx 373 gram.
