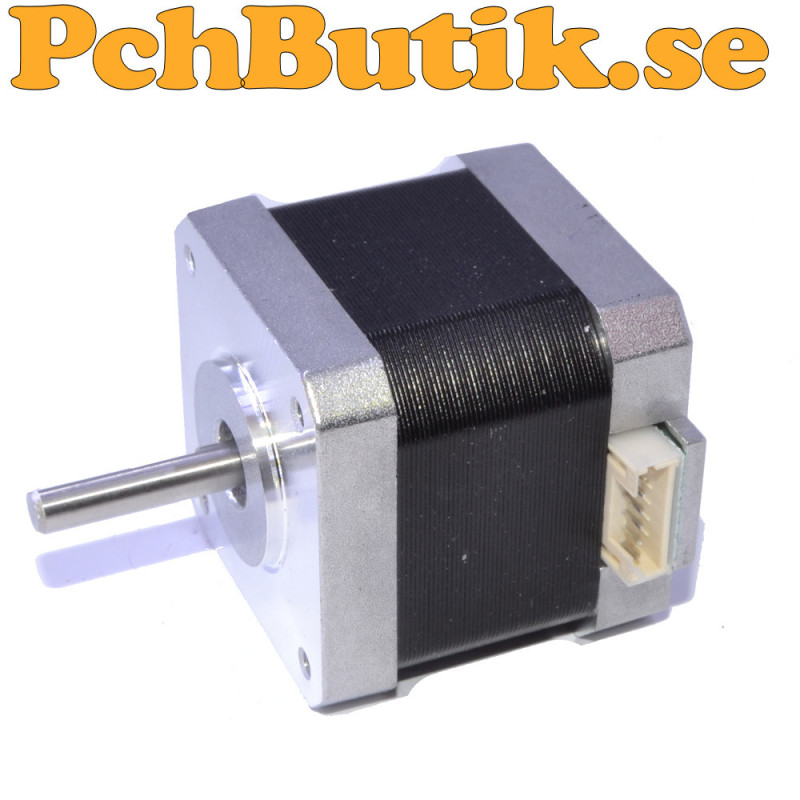

NEMA 17 hybrid stepper motor 42BYGH40-1704A with 1.8 degree step angle

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.

The motor is a bipolar hybrid stepper motor with two separate windings and four connections. It is used together with a current regulated stepper motor driver that controls the current through the windings. With a step angle of 1.8 degrees, the motor provides 200 full steps per revolution. With microstepping, the driver can divide each step into several smaller steps for smoother operation and higher resolution.

Facts.
Model: 42BYGH40-1704A
Motor type: Hybrid stepper motor
Size: NEMA 17
Number of phases: 2 phases
Electrical type: Bipolar
Connections: 4 wires
Step angle: 1.8 degrees
Full steps per revolution: 200
Rated current: 1.7 A per phase
Phase resistance: approximately 1.65 ohms
Rated voltage: approximately 2.8 V per phase at rated current
Motor length: 40 mm
Shaft type: D shaped
Shaft diameter: 5 mm
Shaft length: 21 mm
Material: Stainless steel
Drive type: Current regulated stepper motor driver, not included
Applications: CNC, 3D printers, robotics, automation and electronics
Connection: JST PH 6-pin, 2.0 mm
Cable: JST PH 6-pin, 2.0 mm to XH 4-pin 2.54 mm
Cable length: 1 meter, included

Included.
1 pc module.

About the product.
Weight: approx 310 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 2924
