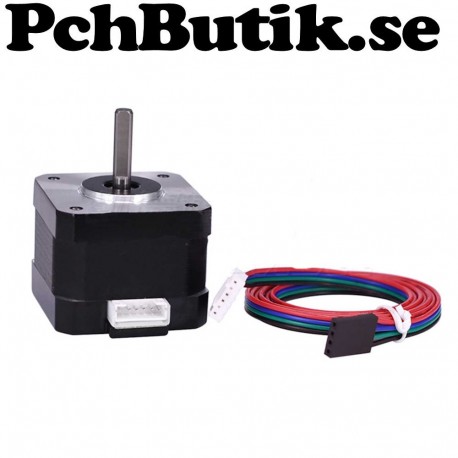

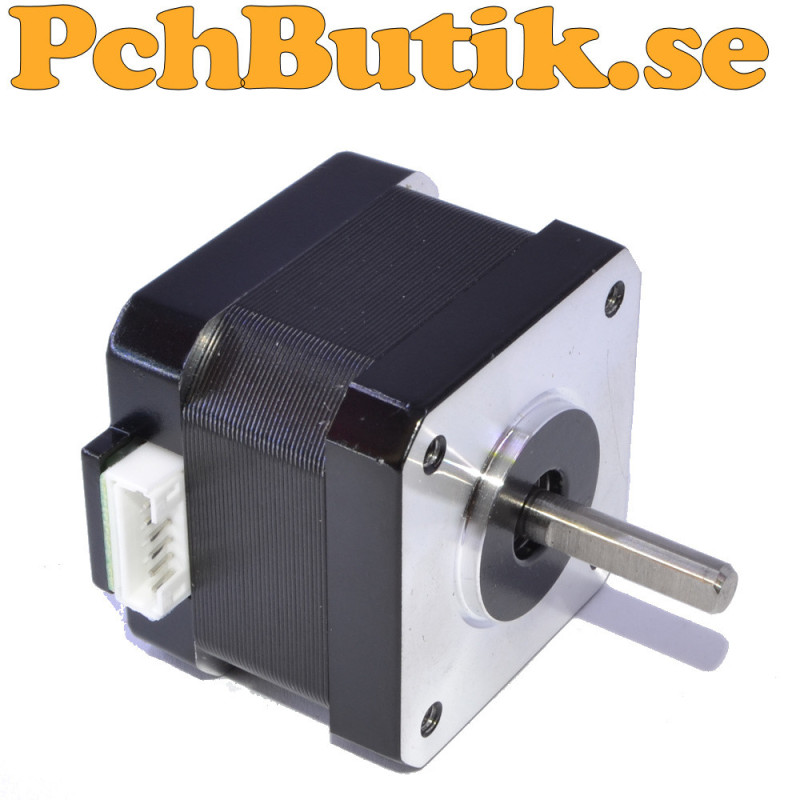

NEMA17 17HS3401 stepper motor two phase hybrid 1.8 degree

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
17HS3401 is a two phase hybrid stepper motor in NEMA17 size designed for precise positioning and controlled motion in various applications. It provides stable and accurate operation with a step angle of 1.8 degrees making it suitable for CNC machines 3D printers and automated systems. The motor offers good torque and can be driven using standard stepper drivers. It comes with double ended wires for easier connection and installation in projects.

Facts.
Model: 17HS3401
Motor type: Hybrid stepper motor
Size: NEMA 17
Body height: 40 mm
Shaft diameter: 5 mm
Shaft shape: D, 4.5 mm
Shaft length: 20 mm
Number of phases: 2 phases
Step angle: 1.8 degrees
Full steps per revolution: 200
Rated voltage: 3.4 V DC
Rated current: 1.0 A per phase
Phase resistance: 3.4 ohms plus or minus 10 percent at 20 degrees C
Drive type: Current regulated stepper motor driver
Electrical motor type: Bipolar
Applications: CNC, 3D printers, robotics, automation and electronics
Connection: JST PH 6-pin, 2.0 mm
Cable: JST PH 6-pin, 2.0 mm to XH 4-pin 2.54 mm
Cable length: 1 meter, included

Included.
1 pc module.

About the product.
Weight: approx 109 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1903
