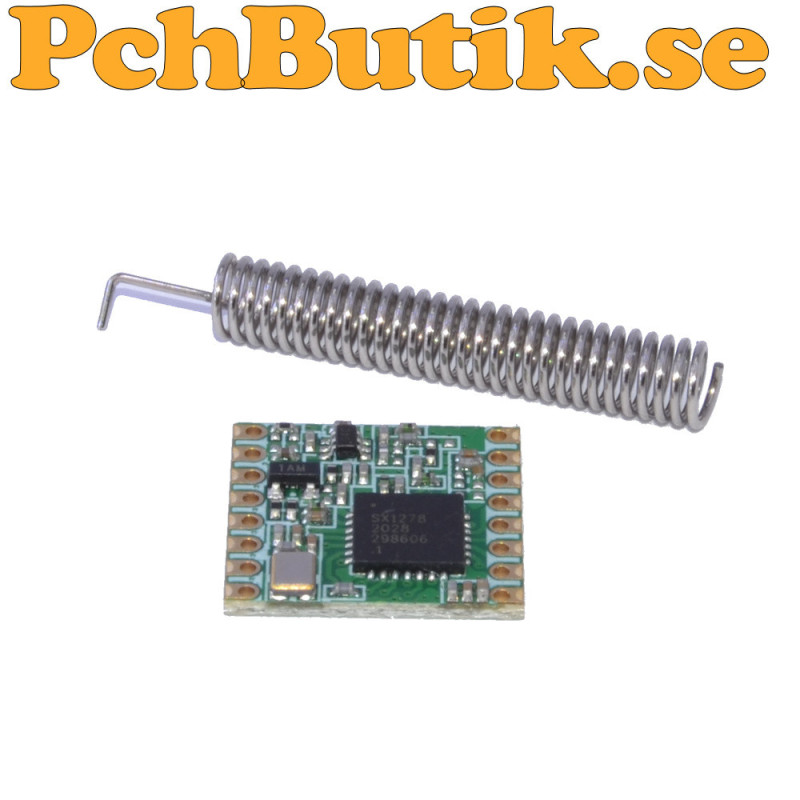

SX1278 470 MHz Wireless LoRa Transceiver Module

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The SX1278 470M is a wireless transceiver module designed for LoRa and other radio modulation modes. The module is based on the Semtech SX1278 and communicates with a microcontroller through SPI. It can operate as both a transmitter and receiver and is suitable for wireless data transmission, telemetry, measurement and control applications.

The SX1278 supports LoRa as well as FSK, GFSK, MSK, GMSK and OOK. LoRa provides high receiver sensitivity and the possibility of long range communication at low data rates. The spreading factor can be selected to adjust the balance between data rate, transmission time and range.

The module provides DIO0 to DIO5 pins that can be used for interrupts and status signals from the radio circuit. DIO0 is commonly used to indicate that a packet has been received or that a transmission has been completed. The other DIO pins can be used for functions such as receive timeout, channel change, CAD and other radio status functions. The DIO functions can be configured through the SX1278 registers.

The module is designed for operation around 470 MHz. A suitable antenna is important for good range and reliable operation. At 470 MHz, a theoretical quarter wave antenna is approximately 16 cm long, although the practical antenna length depends on the antenna construction and surrounding environment.

The SX1278 can also be operated in modes other than LoRa, making the module suitable for experiments with FSK and OOK. It is therefore considerably more flexible than simple ASK and OOK transmitter or receiver modules.

The frequency range around 470 MHz is regulated and its permitted use varies between countries. In Sweden, parts of the 470 to 694 MHz range are used for terrestrial television and professional wireless audio transmission. Always check the applicable regulations for the specific frequency, transmission power and intended use before transmitting.

Juridisk information om radioutrustning
Att äga en radiosändare är normalt tillåtet. Att sända kan kräva tillstånd eller vara otillåtet beroende på frekvens, uteffekt och användning. Att använda en mottagare för att ta emot radiosignaler är normalt tillåtet.


Facts.
Model: SX1278-470M
Radio circuit: Semtech SX1278
Frequency: 470 MHz
Type: Wireless transceiver
Communication: SPI
Modulation: LoRa, FSK, GFSK, MSK, GMSK, OOK
LoRa spreading factor: SF6 to SF12
Transmission: Yes
Reception: Yes
Digital I O: DIO0 to DIO5
DIO0 functions: RxDone and TxDone
DIO1 function: RxTimeout
DIO2 function: FHSS channel change
DIO3 function: CAD complete
DIO4 function: CAD detected
Supply voltage: Normally 3.3 V
Maximum transmission power: Up to approximately 20 dBm depending on configuration
Receiver sensitivity: Down to approximately -148 dBm under certain conditions
Antenna: External antenna for 470 MHz
Quarter wave antenna: Approximately 16 cm theoretical
Applications: LoRa, telemetry, measurement, control and wireless data transmission

Included.
1 pc module.

About the product.
Weight: approx 5 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3685
