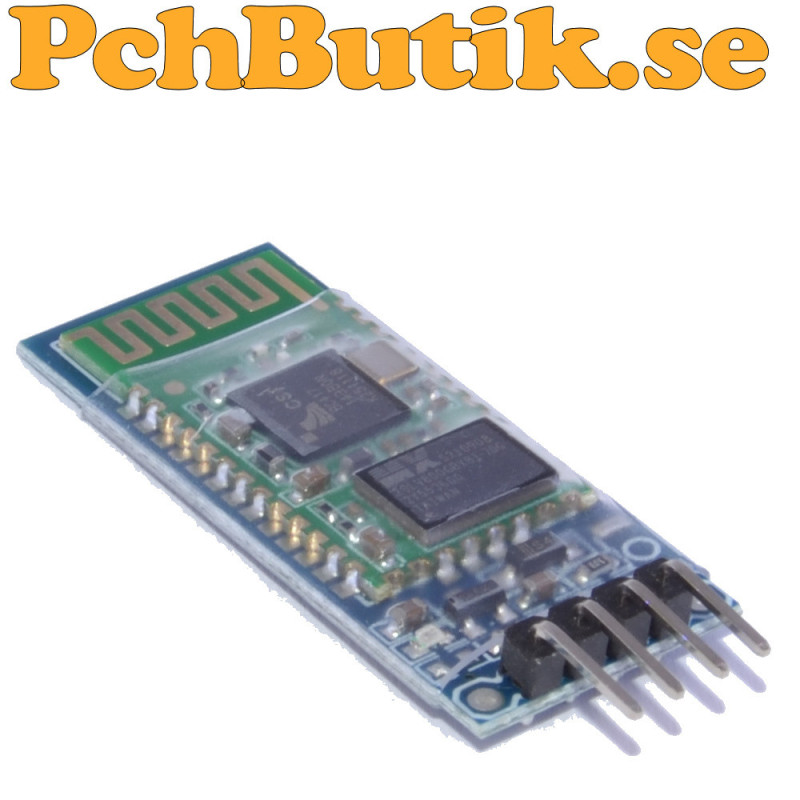

HC-06 Compatible Bluetooth Module for Wireless Serial Communication

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The HC-06 Compatible Version is a Bluetooth module designed for wireless serial communication between a microcontroller and a computer, smartphone, or other Bluetooth device. The module operates as a Bluetooth Slave and uses a UART interface to transmit and receive serial data wirelessly. It is easy to connect to Arduino, AVR, PIC, ARM, MSP430, and many other microcontroller platforms.

The module includes an onboard 3.3 V voltage regulator and accepts a supply voltage from 3.6 V to 6 V. The status LED flashes when no Bluetooth connection is established and remains on continuously when the Bluetooth link is active and the serial port is open. The communication interface uses 3.3 V logic levels, while the module can normally be connected directly to many 5 V microcontrollers without a level converter.

Its compact size makes it suitable for wireless control, data logging, robotics, sensor systems, and many embedded applications requiring a simple wireless serial connection.

Facts.
Product type: Bluetooth UART module
Bluetooth version: Bluetooth 2.0 + EDR
Model: HC-06 Compatible Version
Operating mode: Slave
Communication: UART serial TTL
Supply voltage: 3.6 to 6 V DC
Onboard regulator: 3.3 V LDO
Logic level: 3.3 V TTL
Idle current: Approximately 30 mA
Connected current: Approximately 10 mA
Maximum input voltage: 7 V
Connections: VCC, GND, TXD, RXD
Compatibility: Arduino, AVR, PIC, ARM, MSP430, 8051 and other microcontrollers
Dimensions: 35.7 × 15.2 mm

Included.
1 pc module.

About the product.
Weight: approx 7 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 4366
Remaining stock quantity can be found under the Product details tab.
