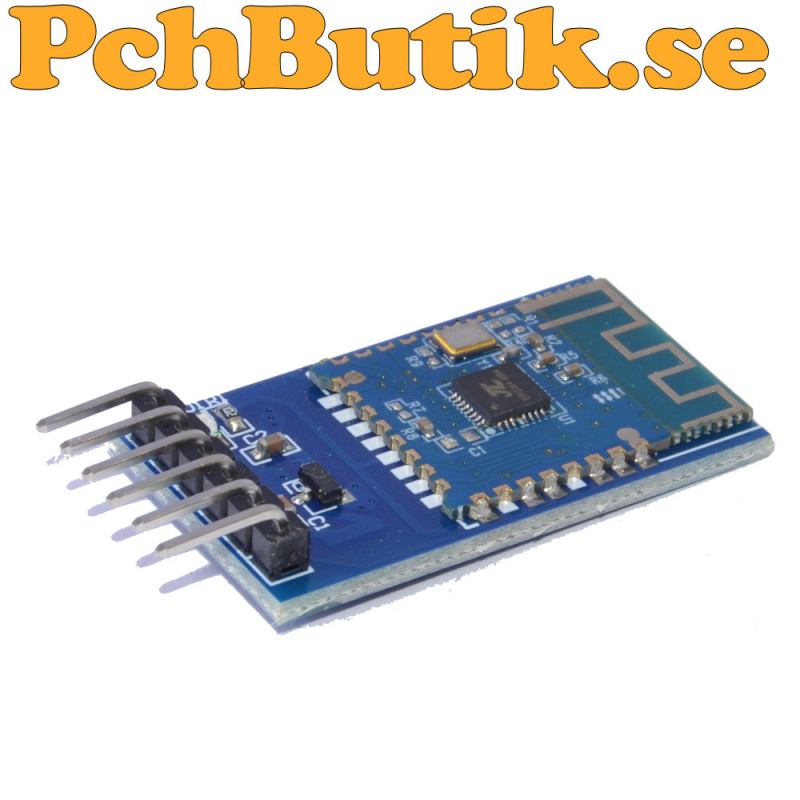

JDY-23 Bluetooth 5.0 module with board

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
JDY-23 is a Bluetooth 5.0 BLE module mounted on a practical base board with six connection pins. The base board makes the module easy to connect to a microcontroller or other electronic circuit and provides connections for PWRC, VCC, GND, TXD, RXD and STAT.

The module communicates with the host system through UART and can be used for wireless serial data transmission. TXD and RXD are used for serial communication, while STAT can be used to read the Bluetooth status. PWRC is used for controlling the power of the module.

The JDY-23 module itself is a castellated module. This means that the connections are provided as solder pads or half holes along the edges of the module, allowing it to be soldered directly onto a custom circuit board. The base board instead provides easily accessible pins for connection.

Bluetooth 5.0 BLE provides low power consumption and is suitable for applications such as communication between a microcontroller and a mobile phone, tablet or other BLE compatible equipment. The module can be configured using AT commands through UART, for example to change the device name and communication settings.

The base board is specified for a supply voltage of 3.6 to 6 V, making it suitable for systems using a standard 5 V supply. However, always check the TXD and RXD signal levels before connecting the board to a 5 V microcontroller.

Facts.
Model: JDY-23
IC: Jieli
Bluetooth: Bluetooth 5.0 BLE
Communication: UART
Base board supply voltage: 3.6 to 6 V
Connections: PWRC, VCC, GND, TXD, RXD, STAT
VCC: Power input
GND: Ground
TXD: UART data output
RXD: UART data input
STAT: Bluetooth status
PWRC: Power control
Bluetooth frequency: 2.4 GHz
Transmit power: Up to approximately 4 dBm
Sensitivity: Approximately -97 dBm
Default baud rate: 9600 baud
Configuration: AT commands via UART
Antenna: Built in PCB antenna
Module type: Castellated module
Application: Wireless serial communication
Compatibility: BLE compatible devices

Included.
1 pc module.

About the product.
Weight: approx 8 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 3834
Remaining stock quantity can be found under the Product details tab.
In our range since: 2026-10-12
