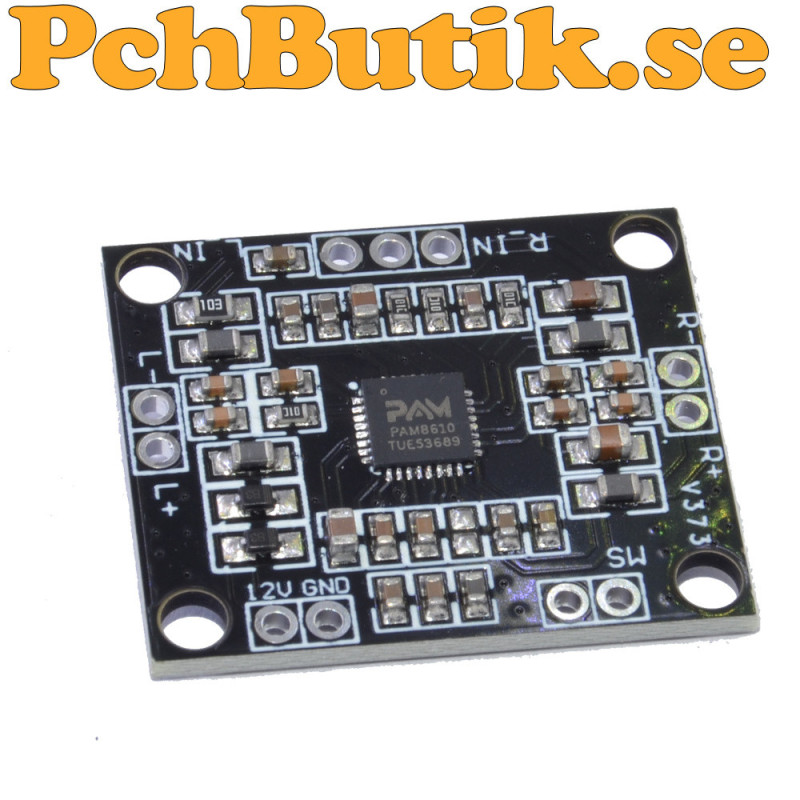

PAM8610 2x15W digital stereo amplifier board

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The PAM8610 Dual Channel Power Amplifier Board is a compact digital stereo amplifier board for audio projects and other applications where a small and efficient audio amplifier is required.

The amplifier has two separate audio channels and is based on the PAM8610. It can be used to drive two speakers and is designed for speaker impedances from 4 to 8 ohms. At 8 ohms, the specified output power is 10 W per channel under the stated conditions.

The board operates from a DC supply voltage of 7 to 15 V and provides high efficiency, making it suitable for battery powered and compact audio projects. The low quiescent current helps reduce power consumption when high output power is not required.

The frequency range is 20 Hz to 20 kHz, covering the normal audible audio range. The 15 kohm input impedance makes the board suitable for connection to audio outputs from microcontrollers, DAC modules, media players and other audio sources.

The compact design makes the amplifier board useful for DIY speakers, small audio systems, Arduino and ESP32 projects and other electronic constructions where space is limited.

Facts.
Product type: Digital stereo amplifier board
Amplifier IC: PAM8610
Number of channels: 2
Supply voltage: DC 7 to 15 V
Output power: 10 W + 10 W at 8 ohms
Speaker impedance: 4 to 8 ohms
Efficiency: Up to 90 percent
Shutdown current: 4 uA
Quiescent current: 20 mA
Signal to noise ratio: 86 dB
Total harmonic distortion: 0.1 percent at 5 W, 1 kHz and 8 ohms
Frequency range: 20 Hz to 20 kHz
Input impedance: 15 kohms
Output impedance: 4 to 8 ohms
Board size: 30 x 25 x 2.5 mm
Application: Stereo audio
Application: Speaker projects
Application: Arduino projects
Application: ESP32 projects
Application: DIY audio projects

Included.
1 pc module.

About the product.
Weight: approx 8 gram.
