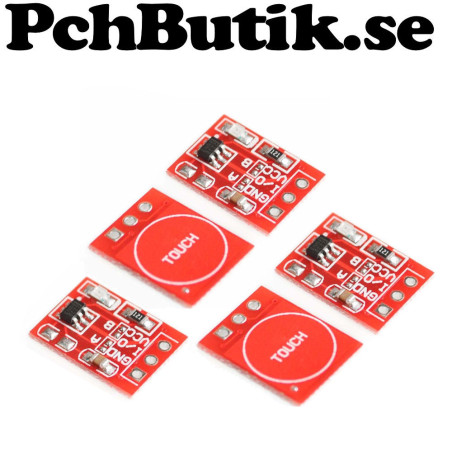

TTP223 capacitive touch button module with self locking

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The TTP223 is a capacitive touch button module that replaces mechanical switches.
It detects touch input and provides a stable digital output signal.
The module can be configured for momentary or self locking operation using solder jumpers.
The output can be inverted and an onboard LED indicates output status.
Ideal for Arduino microcontrollers and other control systems.

Facts.
Model: TTP223
Type: Capacitive touch button module
Operating voltage: 2.5 to 5.5 V
Compatibility: 3.3 V and 5 V systems
Channel: 1
Modes: Momentary or self locking
Output: High or low TTL selectable
Configuration: Solder jumpers
Indicator: Onboard LED
Size: 15 x 11 mm

Included.
5 pcs

About the product.
Weight: approx 5 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 2004
Remaining stock quantity can be found under the Product details tab.
