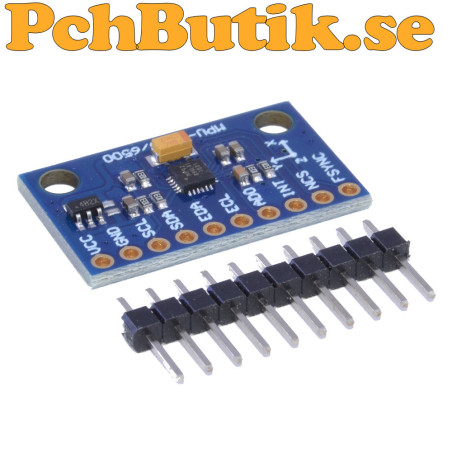

GY-6500 Compatible 6-Axis Motion Sensor with I2C and SPI

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The GY-6500 compatible module is a 6-axis IMU that combines a 3-axis accelerometer and a 3-axis gyroscope in a compact package. It is designed to measure acceleration, tilt, vibration, and rotational speed for a wide range of electronic applications.

The module supports both I2C and SPI communication and is compatible with Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers. Its high measurement accuracy and low power consumption make it ideal for robotics, drones, balancing systems, motion detection, and embedded applications.

This module is compatible with the GY-6500 design and provides an easy way to integrate advanced motion sensing into prototypes and finished projects.

Module Pin I2C and SPI Function
VCC Power supply
GND Ground
SCL SCLK (SPI Clock) / I2C Clock
SDA SDI / MOSI (Master Out, Slave In) / I2C Data
EDA SDO / MISO (Master In, Slave Out) / Auxiliary I2C Data
NCS CS / SS (Chip Select)
INT Interrupt output (optional)
FSYNC External synchronization (rarely used)
AD0 Used only in I2C mode to select the I2C address. Not used in SPI mode.

Facts.
Product type: 6-axis IMU module
Model: GY-6500 compatible
Sensors: 3-axis accelerometer and 3-axis gyroscope
Degrees of freedom: 6 DOF
Communication interface: I2C and SPI
Operating voltage: 3 to 5 V DC
Accelerometer ranges: ±2 g, ±4 g, ±8 g, ±16 g
Gyroscope ranges: ±250, ±500, ±1000 and ±2000 °/s
Compatible with: Arduino, ESP32, STM32, Raspberry Pi and other microcontrollers
Applications: Robotics, drones, tilt sensing, motion detection, stabilization, and IoT projects

Included.
1 pc module.

About the product.
Weight: approx 6 gram.
