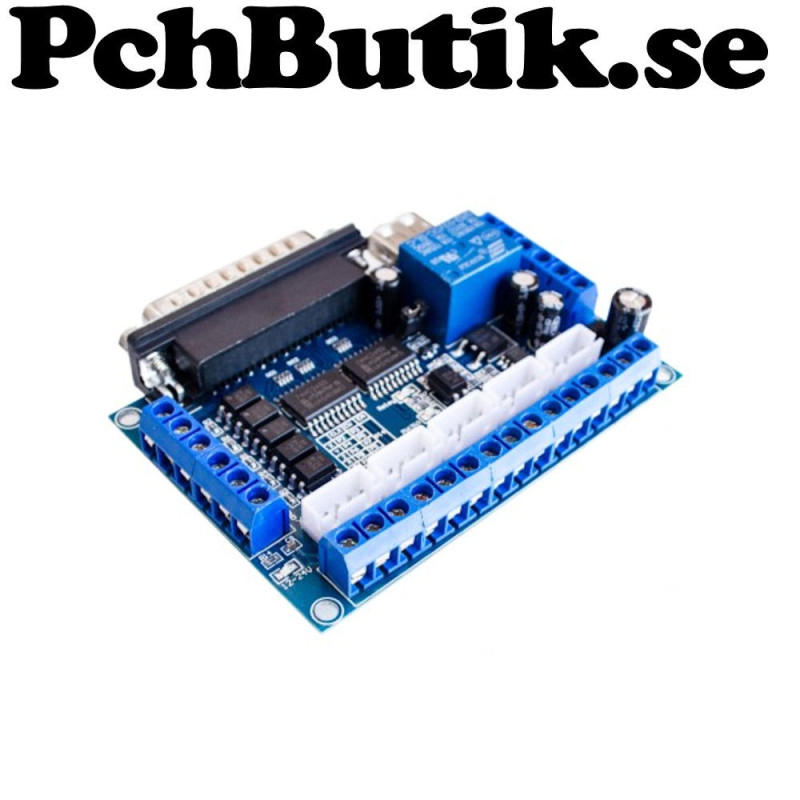

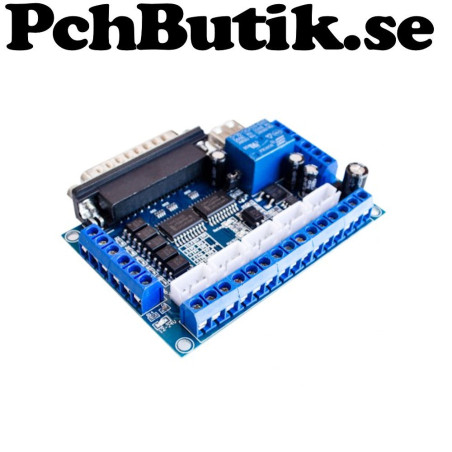

MACH3 5 axis CNC controller board with optocoupler isolation

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This MACH3 compatible CNC controller board is designed for precise control of up to five stepper motor axes via parallel port. The board features optocoupler isolation on all input signals which protects the computer from electrical noise and faults. With support for emergency stop limit switches and spindle control it provides a stable and flexible solution for CNC machines mills and automated systems. Separate power supply for logic and external devices improves safety and operational reliability.

Facts.
Type: CNC controller board
Compatibility: MACH3 parallel port
Axes: 5
Supply voltage: 12 to 24V
Signal isolation: Optocouplers on all inputs
Digital ports: 17
Relay output: Yes for spindle control
Analog output: 0 to 10V spindle speed
PWM output: Yes
Input level: 5V logic
Protection: Reverse polarity protection
Size: 89.7 x 68.5 x 19.5 mm

Included.
1 pc module.

About the product.
Weight: approx 89 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 1398
