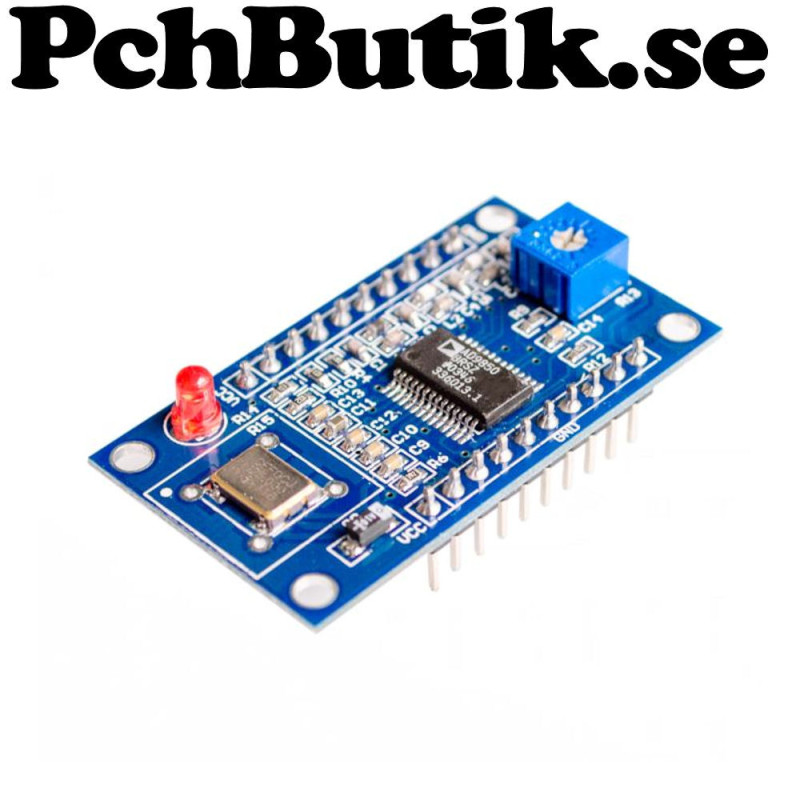

AD9850 DDS signal generator module 0 to 40 MHz

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The AD9850 module is a DDS signal generator capable of producing stable sine and square waves up to 40 MHz. It is used in test equipment laboratory setups and development projects where accurate frequency control is required. The module supports both serial and parallel interfaces and includes a built in low pass filter that improves signal quality. Adjustable reference level and duty cycle make it flexible for many applications.

Facts.
Chip: AD9850 DDS
Sine frequency range: 0 to 40 MHz
Square frequency range: 0 to 1 MHz
Waveforms: Sine and square
Reference crystal: 125 MHz
Filter: Low pass 70 MHz
Interface: Serial or parallel selectable
Duty cycle adjustment: Via potentiometer
Output adjustment: Reference pin available
Size: 4.5 x 2.6 cm

Included.
1 pc module.

About the product.
Weight: approx 5 gram.
Contact us if you have questions at info@pchbutik.se
Article no: 0119
