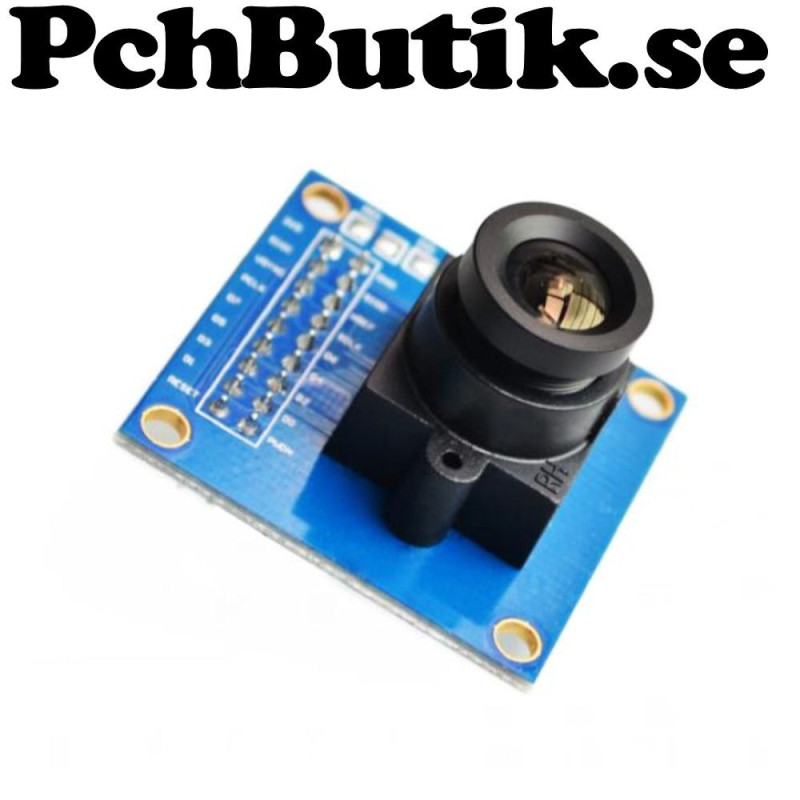

OV7670 camera module VGA CMOS sensor with lens

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
This OV7670 camera module is a compact image sensor with an integrated lens designed for microcontroller and embedded projects. It captures images in VGA resolution and outputs image data directly to a controller for processing or analysis. The module is suitable for robotics monitoring machine vision and experimental imaging projects where small size and low power consumption are important.

Facts.
Sensor: OV7670 CMOS
Resolution: 640x480 VGA
Pixel size: 3.6 um x 3.6 um
IO voltage: 2.5 to 3.0 V
Core voltage: 1.8 V via internal LDO
Power consumption: 60 mW at 15 fps
Sleep current: less than 20 uA
Max frame rate: 30 fps VGA
Field of view: 25 degrees
Signal to noise ratio: 46 dB
Dynamic range: 52 dB
Operating temperature: minus 30 to plus 70 C
Stable temperature: 0 to 50 C
Optical size: 1 6 inch
Dark current: 12 mV per second at 60 C

Included.
1 pc module.

About the product.
Weight: approx 13 gram.
