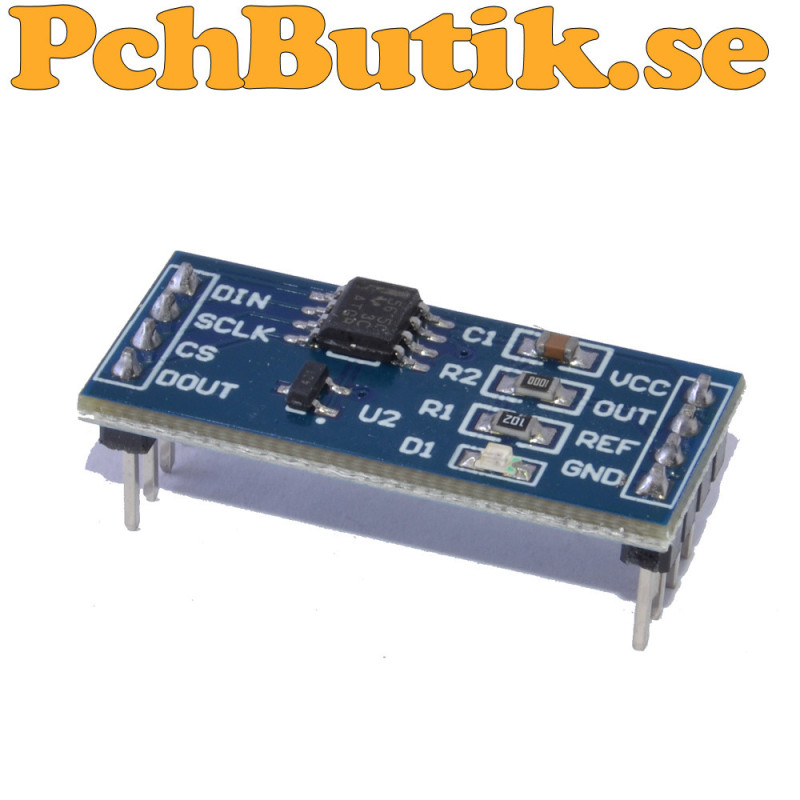

TLC5615 10 bit digital to analog converter module

Information about this module is generated with the help of AI. The description may be incomplete, inaccurate, or subject to change.
The TLC5615 is a digital to analog converter module that converts digital values into an analog voltage. The module is equipped with the TLC5615 chip and uses a serial interface, making it easy to connect to Arduino, other microcontrollers and microprocessors.

The DAC provides 10 bit resolution, giving 1024 different levels from 0 to 1023. This makes the module suitable for applications where a microcontroller needs to generate or control an analog voltage.

The TLC5615 uses three serial signals for data transfer. These are used for data, clock and chip select. The serial interface means that only a few connections are required between the microcontroller and the module.

The output is a voltage output. The maximum ideal output voltage is up to twice the reference voltage. With a 5 V supply, a reference voltage such as 2.048 V can be used to provide a maximum ideal DAC output of approximately 4.096 V.

The module features a Power On Reset function that resets the circuit during startup. It can be used for control voltages, signal generators, simple waveforms, analog levels and other electronics projects where a digital signal needs to be converted into an analog voltage.

The TLC5615 is particularly useful with microcontrollers that do not have a built in DAC or where a separate 10 bit DAC is required.

Facts.
Chip : TLC5615
Type : Digital to analog converter
Resolution : 10 bits
Digital levels : 1024
Digital value : 0 to 1023
Interface : Serial
Serial signals : 3
Output : Analog voltage output
Gain : 2 times the reference voltage
Supply voltage : 5 V
Reference voltage : Recommended up to 3.0 V at 5 V supply
Example reference voltage : 2.048 V
Ideal maximum output : Approximately 4.096 V with 2.048 V reference
Power On Reset : Yes
Application : Arduino, microcontrollers and microprocessors
Typical applications : Control voltage, signal generator and analog control signal
Dimensions : 30 x 14 mm
Material : Plastic and metal
Color : Blue
